3RT20272AB00 | CONTACTOR S0 32A 24VAC 1NO/1NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 15KW/400V, 1NO+1NC, AC 24V 50HZ, 3-POLE, SZ S0 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20272AB00

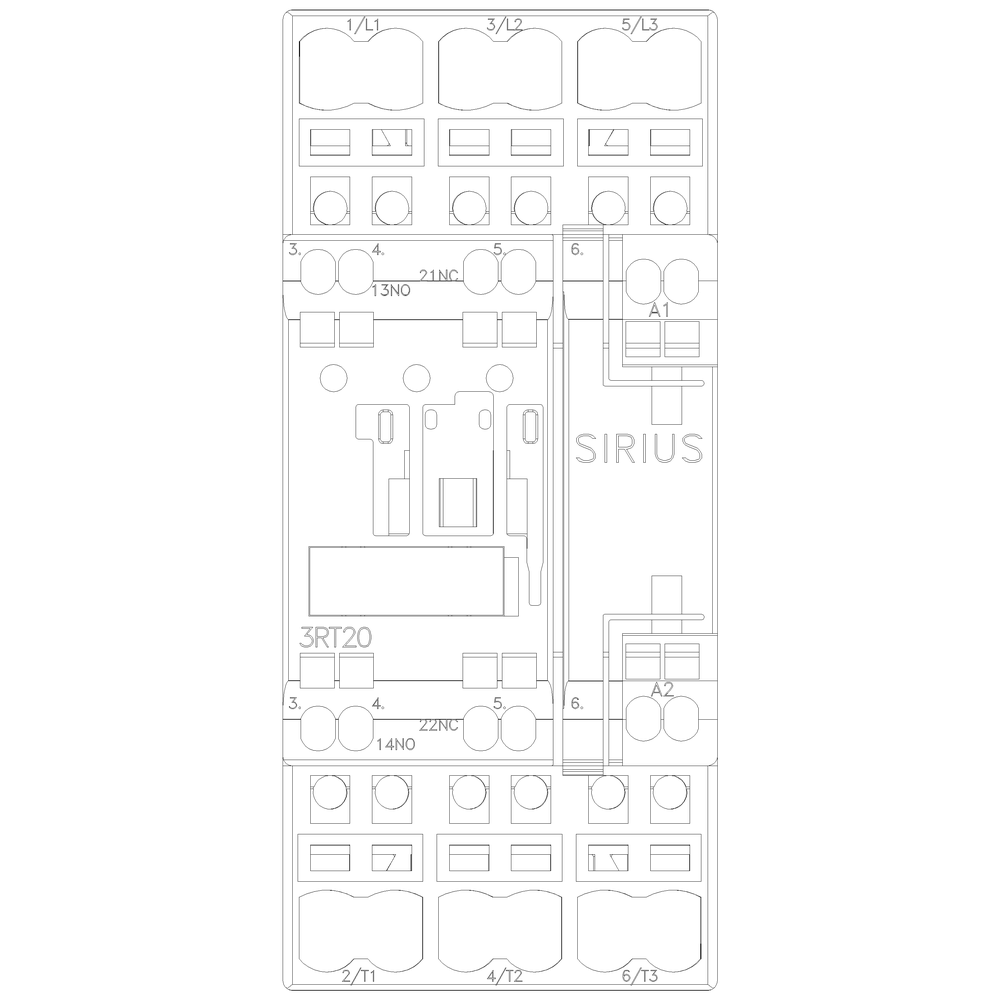

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20272AB00

Item Number	3RT20272AB00
Brand	Siemens Electrical
Height	4.180 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	24 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	32 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	15 kW
Rated operation power NEMA	14.709974999 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.96800 LB
Width	2.130 IN
