3RT20271BB443MA0 | CONTACTOR S0 32A 24VDC 2NO/2NC SCRW | Siemens Electrical

Contactor, AC-3, 15KW/400V, 2NO+2NC, DC 24V, 3-pole, sz s0 screw terminal permanent aux. switch for suva applications

Brand: Siemens ElectricalSKU: 3RT20271BB443MA0

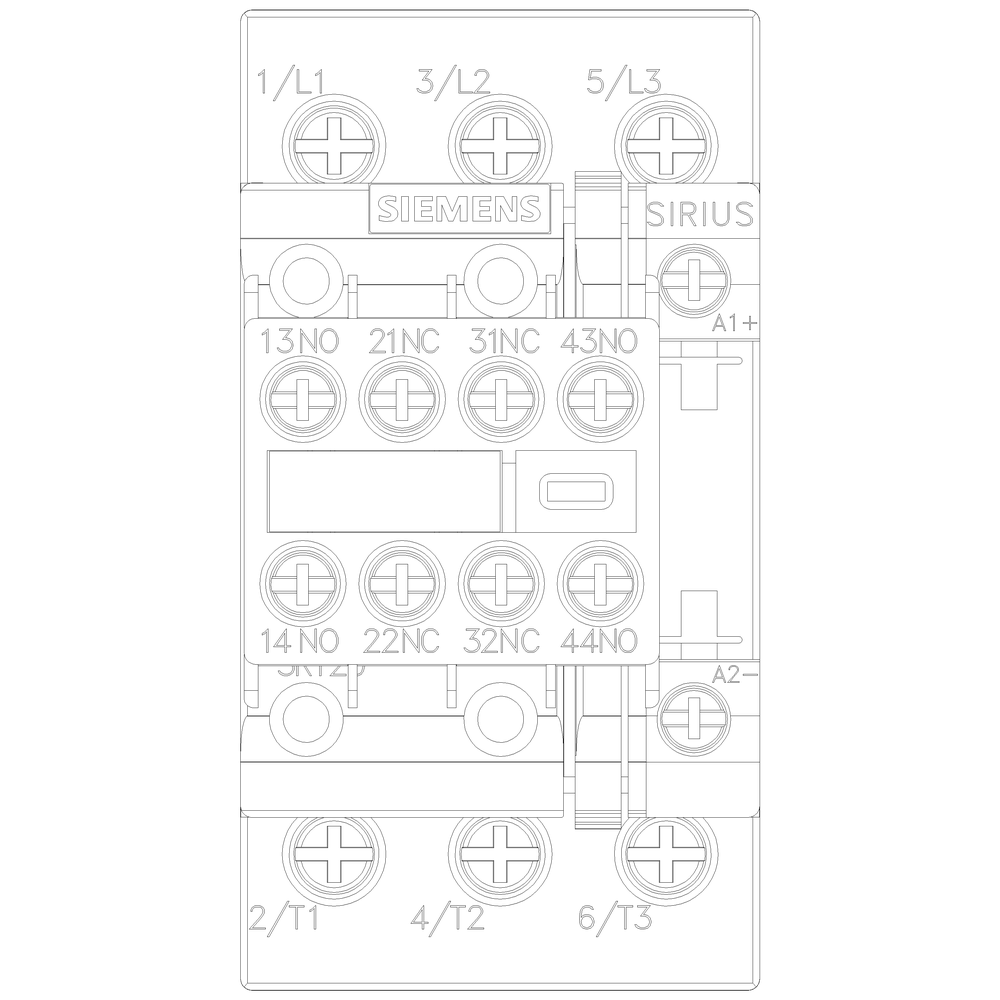

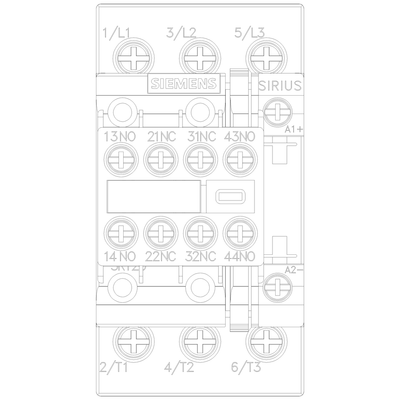

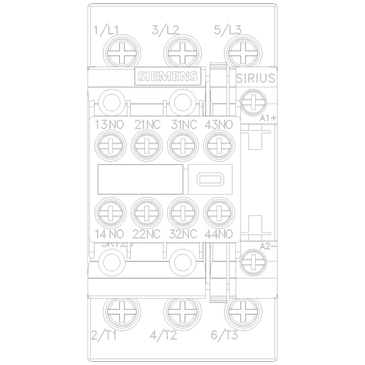

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20271BB443MA0

Item Number	3RT20271BB443MA0
Brand	Siemens Electrical
Height	3.600 IN
Length	5 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	32 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	15 kW
Rated operation power NEMA	14.709974999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	1.45500 LB
Width	2.200 IN
