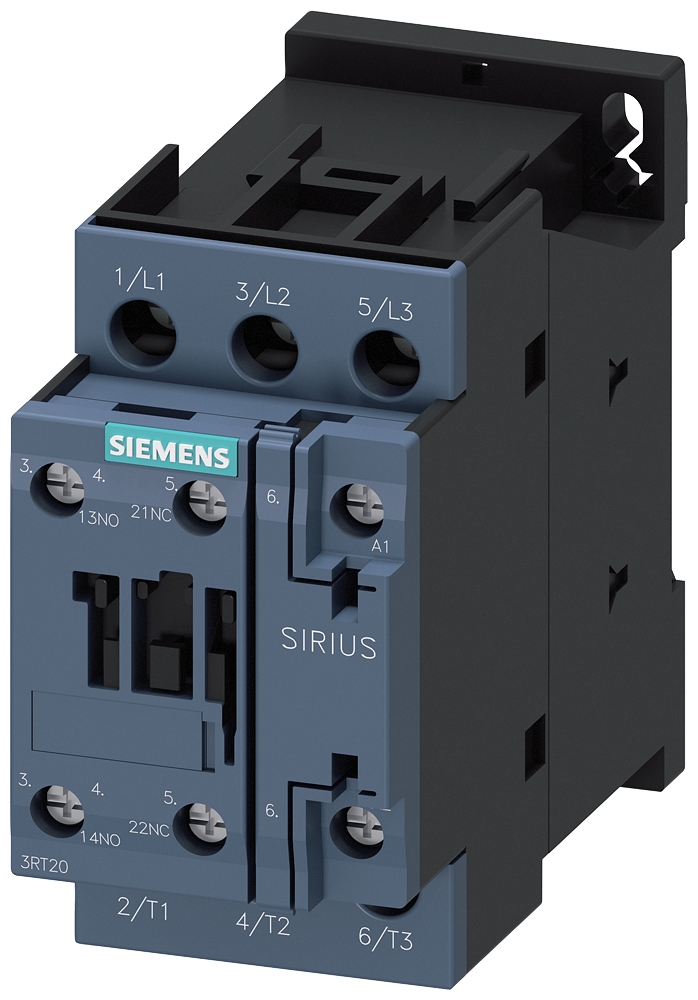

3RT20271AU20 | CONTACTOR S0 32A 240VAC 1NO/1NC SCRW | Siemens Electrical

CONT, AC-3, 15KW/400V, 1NO+1NC,AC

Brand: Siemens ElectricalSKU: 3RT20271AU20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20271AU20

Item Number	3RT20271AU20
Brand	Siemens Electrical
Height	4.180 IN
Length	3.630 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	380 V
Rated control supply voltage Us at AC 60HZ	380 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	32 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	15 kW
Rated operation power NEMA	14.709974999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.85800 LB
Width	2.130 IN
