3RT20264XB400LA2 | CONTACTOR RAIL S0 25A 24VDC 1NO/1NC RLUG | Siemens Electrical

CONT. F. RAILW. A., AC-3, 11KW/400V, 1NO

Brand: Siemens ElectricalSKU: 3RT20264XB400LA2

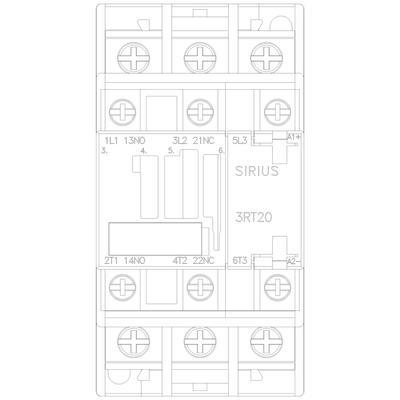

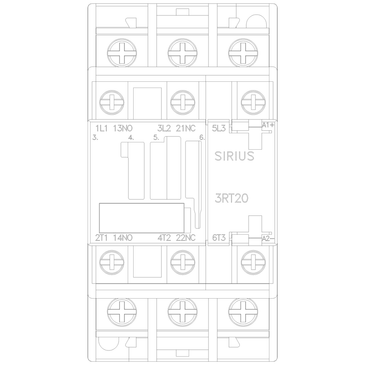

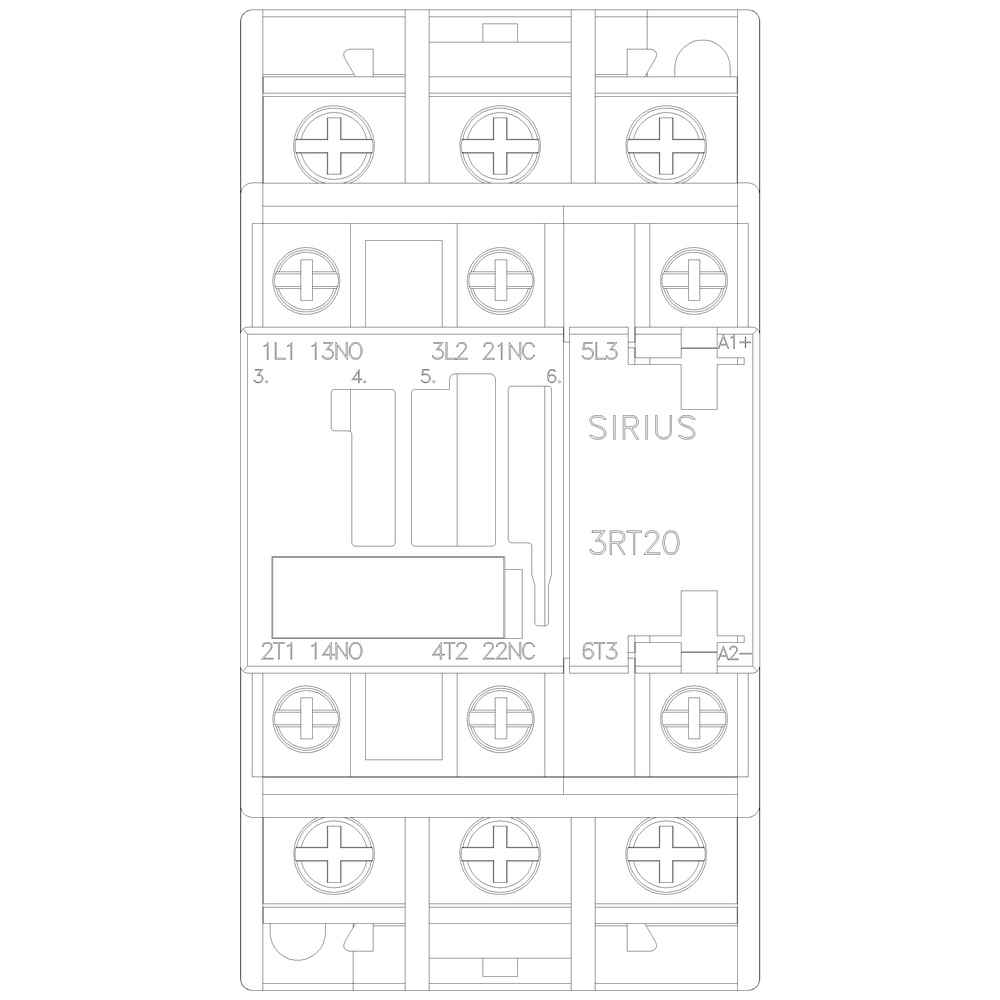

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20264XB400LA2

Item Number	3RT20264XB400LA2
Brand	Siemens Electrical
Height	4.570 IN
Length	3.630 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power at AC-4; 400 V	7.5 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Other
Voltage type for actuating	DC
Weight	1.320 LB
Width	2.130 IN
