Documents: 3RT20262XB400LA2

Datasheet

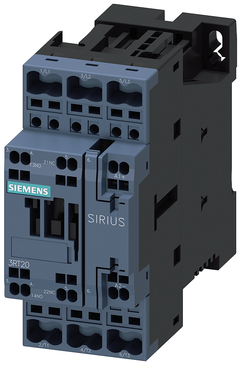

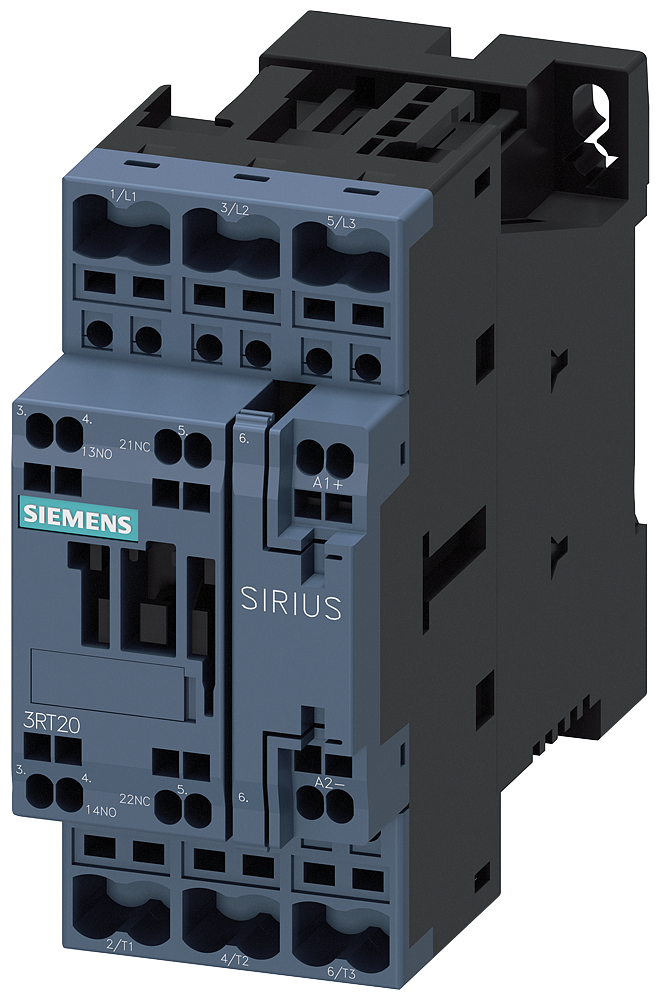

3RT20262XB400LA2 | CONTACTOR RAIL S0 25A 24VDC 1NO/1NC SP | Siemens Electrical

CONT. F. RAILW. A., AC-3, 11KW/400V, 1S+1OE, AC(40-60HZ)/DC-OPERATED, UC 24V, 0,7...1,25*US, M. VARISTOR INTEGRATED, 3-POLE SIZE S0, SPRING-TYPE TERM.

Brand: Siemens ElectricalSKU: 3RT20262XB400LA2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20262XB400LA2

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20262XB400LA2

Specifications

Item Number	3RT20262XB400LA2
Brand	Siemens Electrical
Height	4.570 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power at AC-4; 400 V	7.5 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.320 LB
Width	2.130 IN
