3RT20262NP30 | CONTACTOR S0 25A 200-280VUC 1NO/1NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 11KW/400V, 1NO+1NC, AC(40-60HZ)/DC ACTUAT. , UC 200...280V, 3-POLE, SZ S0 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20262NP30

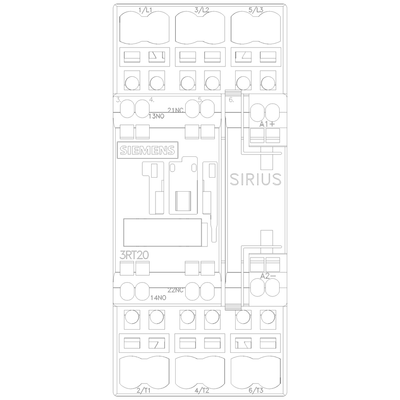

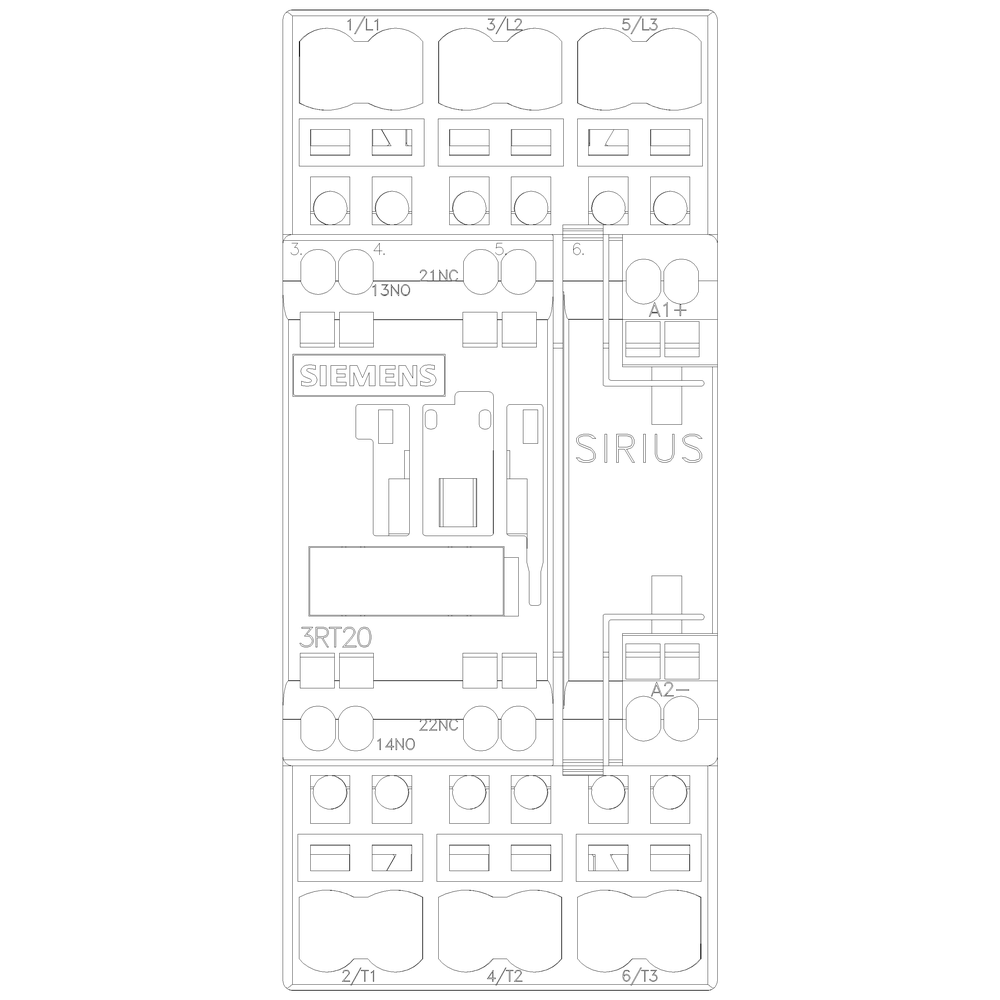

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20262NP30

Item Number	3RT20262NP30
Brand	Siemens Electrical
Height	4.570 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC/DC
Weight	1.27600 LB
Width	2.130 IN
