Documents: 3RT20262EK60

Datasheet

3RT20262EK60 | CONTACTOR.AC3:11KW 1NO+1NC 110V50H120V60 | Siemens Electrical

power contactor. AC-3 25 A. 11 kW / 400 V 1 NO + 1 NC. 110 V AC. 50 Hz 120 V. 60 Hz. 3-pole. Size S0. Spring-type terminal RC 3RT2926-1CC00 plugged-in

Brand: Siemens ElectricalSKU: 3RT20262EK60

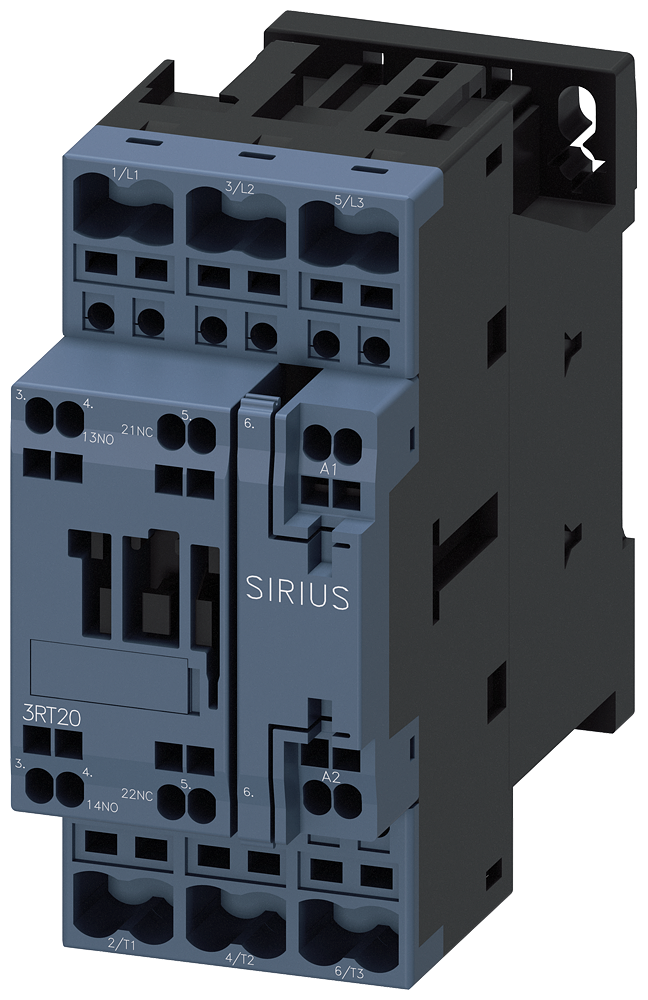

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20262EK60

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20262EK60

Specifications

Item Number	3RT20262EK60
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.99700 LB
