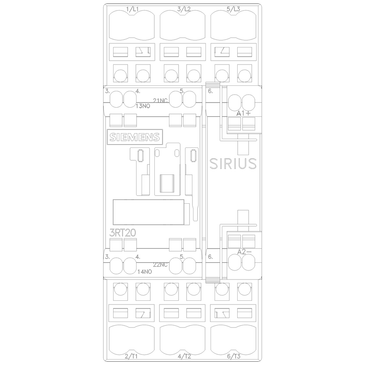

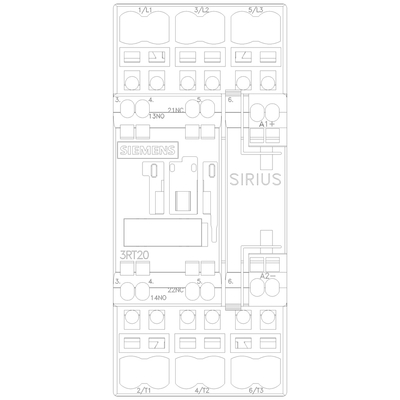

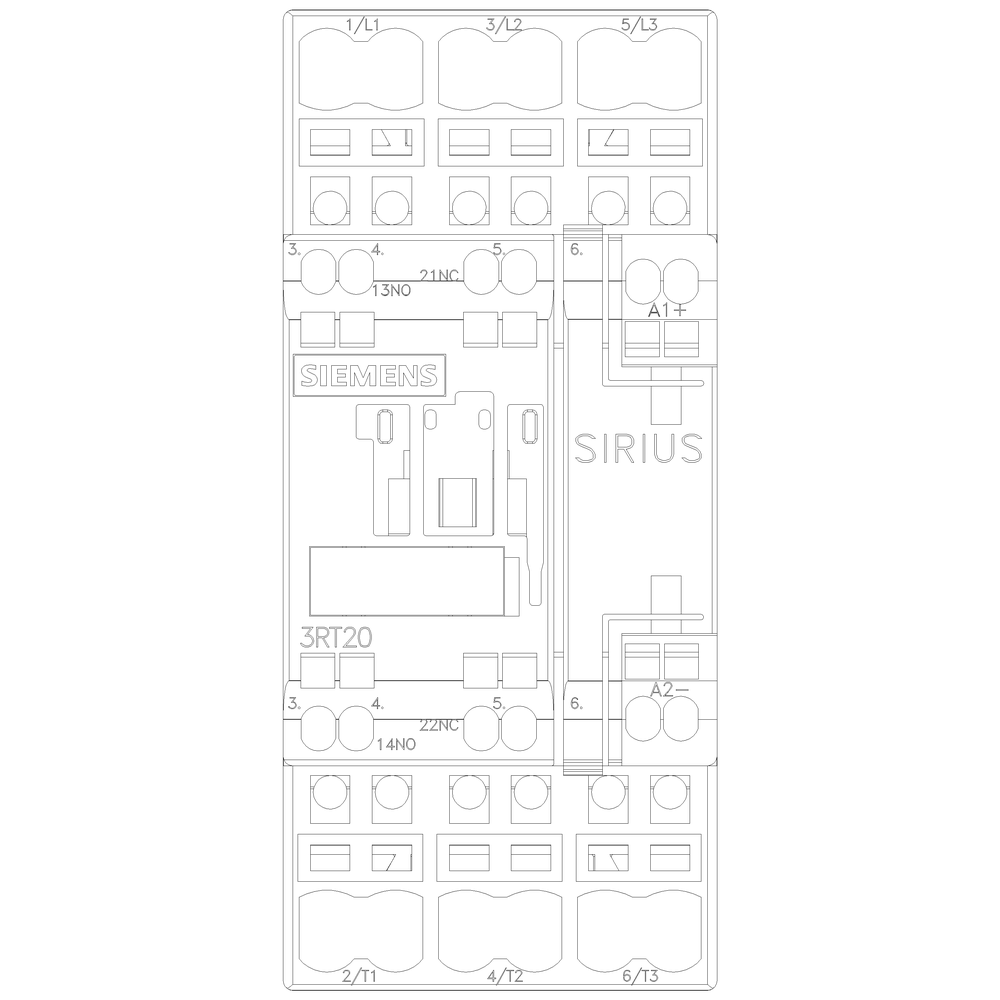

3RT20262DB40 | CONTACTOR.AC3:11KW 1NO+1NC DC24V M.VARIS | Siemens Electrical

Power contactor. AC-3 25 A. 11 kW / 400 V 1 NO + 1 NC. 24 V DC with varistor 3-pole. Size S0. spring-type terminal

Brand: Siemens ElectricalSKU: 3RT20262DB40

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20262DB40

Item Number	3RT20262DB40
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.400 LB
