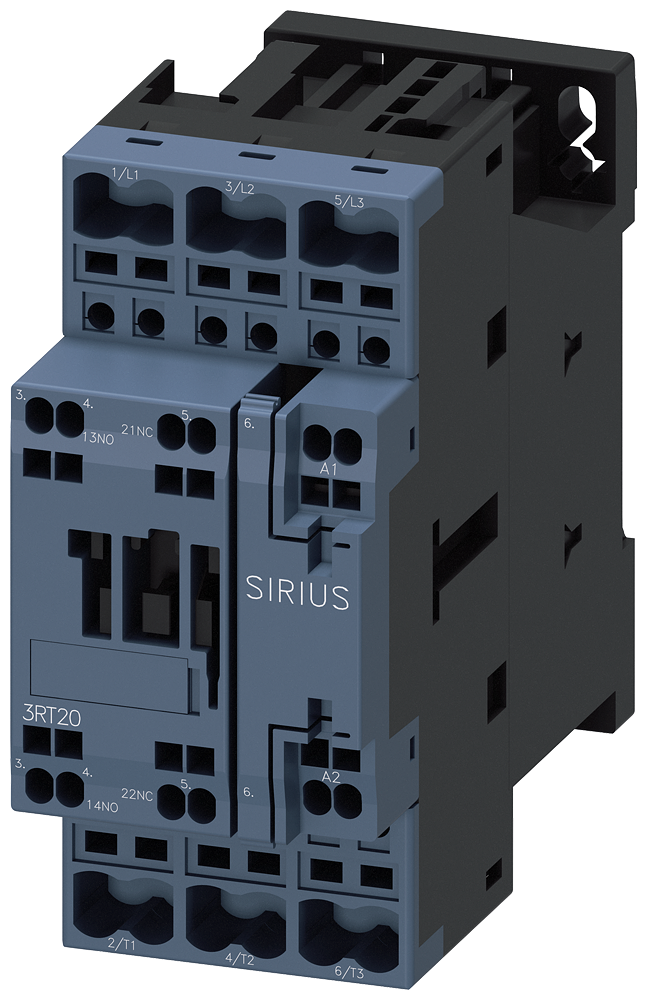

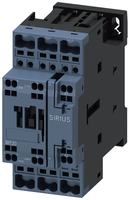

3RT20262CV60 | CONTACTOR S0 25A 480VAC 1NO/1NC SPRG | Siemens Electrical

Contactor, AC-3, 11KW/400V, 1NO+1NC, AC 480v 60HZ, 3-pole, sz s0 spring-type terminals .

Brand: Siemens ElectricalSKU: 3RT20262CV60

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20262CV60

Item Number	3RT20262CV60
Brand	Siemens Electrical
Height	4.250 IN
Length	4.150 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 60HZ	480 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.920 LB
Width	2.250 IN
