3RT20262BB40 | CONTACTOR S0 25A 24VDC 1NO/1NC SPRG | Siemens Electrical

Contactor, AC-3, 11KW/400V, 1NO+1NC, DC 24V, 3-pole, sz s0 spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20262BB40

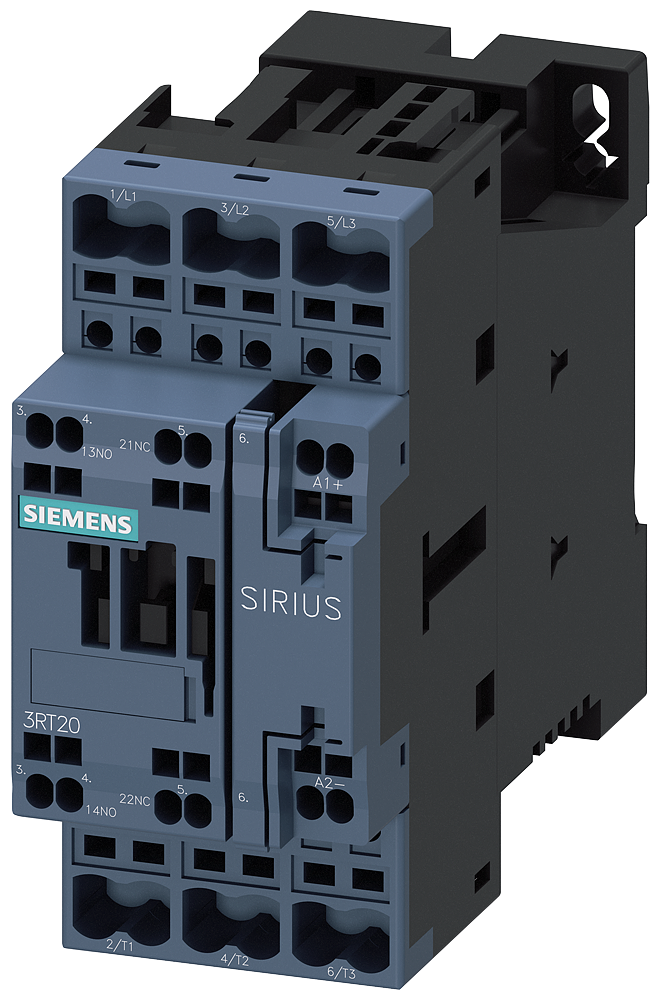

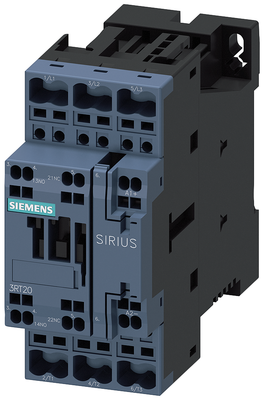

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20262BB40

Item Number	3RT20262BB40
Brand	Siemens Electrical
Height	5 IN
Length	5.200 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.360 LB
Width	1.5 IN
