3RT20262AL201AA0 | CONTACTOR.AC3:11KW 1NO+1NC 230V 50/60HZ | Siemens Electrical

power contactor. AC-3 25 A. 11 kW / 400 V 1 NO + 1 NC. 230 V AC. 50 / 60 Hz. 3-pole. Size S0. Spring-type terminal upright mounting position

Brand: Siemens ElectricalSKU: 3RT20262AL201AA0

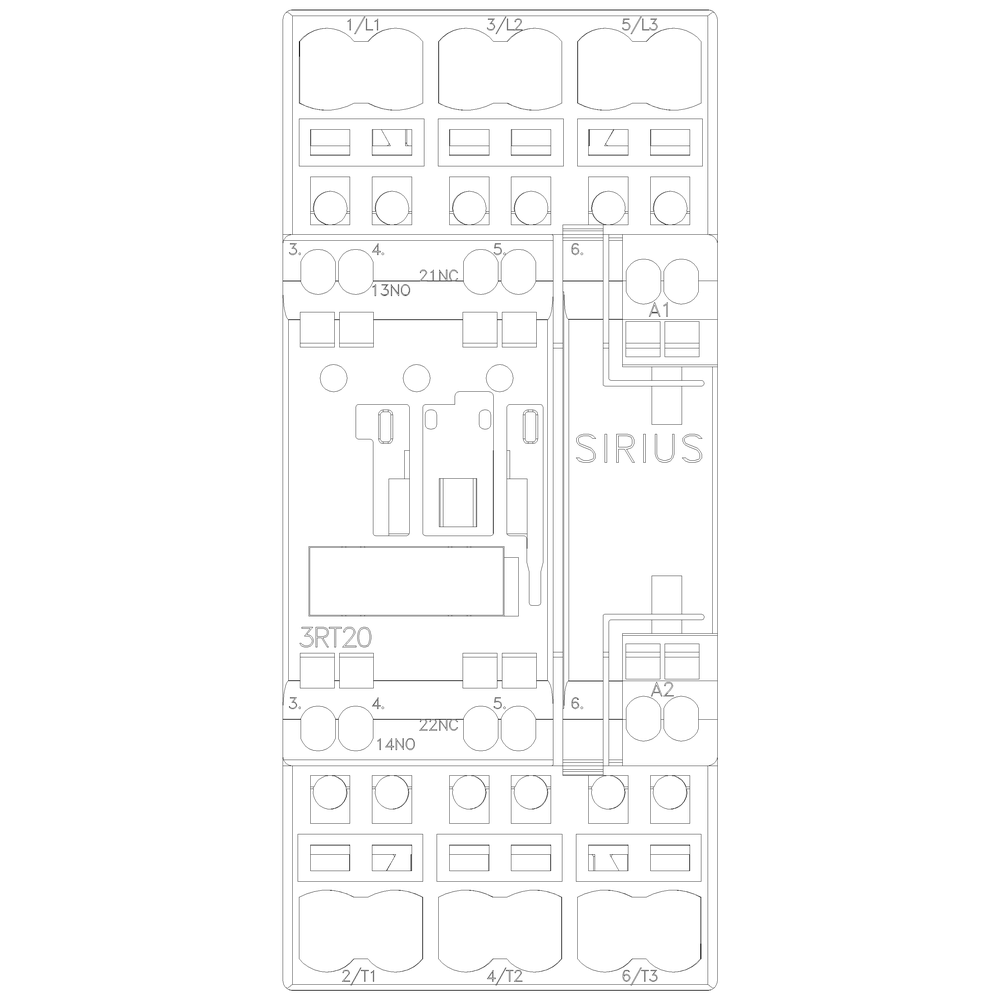

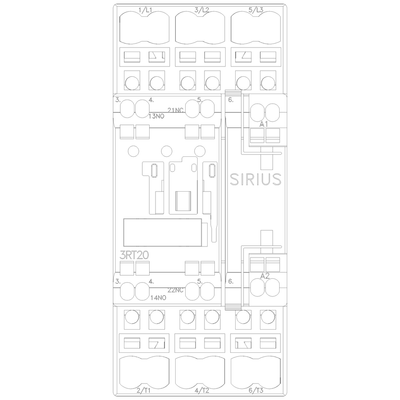

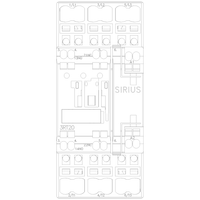

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20262AL201AA0

Item Number	3RT20262AL201AA0
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	230 V
Rated control supply voltage Us at AC 60HZ	230 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.99500 LB
