3RT20261BD40 | CONTACTOR S0 25A 42VDC 1NO/1NC SCRW | Siemens Electrical

CONT, AC-3, 11KW/400V, 1NO+1NC, DC

Brand: Siemens ElectricalSKU: 3RT20261BD40

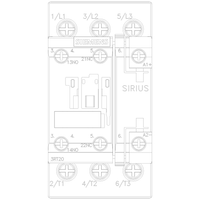

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20261BD40

Item Number	3RT20261BD40
Brand	Siemens Electrical
Height	4.570 IN
Length	3.630 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	42 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	1.27600 LB
Width	2.130 IN
