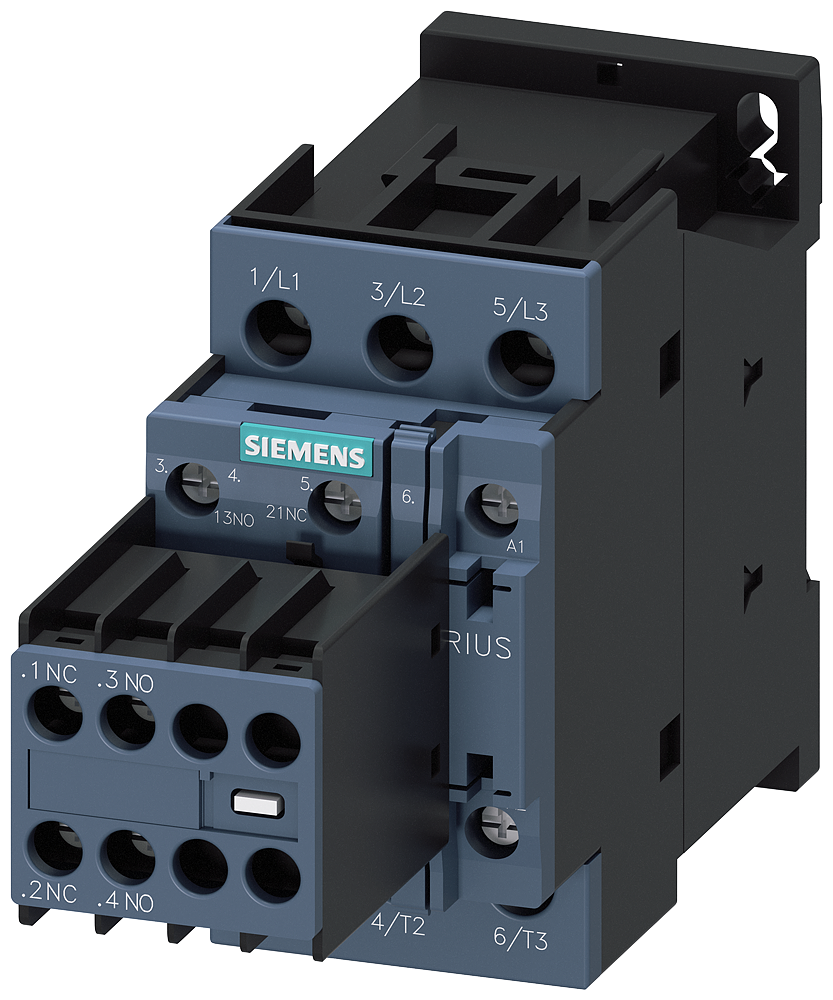

3RT20261AK64 | CONTACTOR S0 25A 120VAC 2NO/2NC SCRW | Siemens Electrical

CONTACTOR, AC-3, 11KW/400V, 2NO+2NC, AC 110V 50HZ 120V 60HZ 3-POLE, SZ S0 SCREW TERMINAL REMOVABLE AUX. SWITCH

Brand: Siemens ElectricalSKU: 3RT20261AK64

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20261AK64

Item Number	3RT20261AK64
Brand	Siemens Electrical
Height	5.86700 IN
Length	3.62300 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.99600 LB
Width	2.12600 IN
