Documents: 3RT20261AK60
3RT20261AK60 | CONTACTOR S0 25A 120VAC 1NO/1NC SCRW | Siemens Electrical
CONTACTOR_AC 3RT2026-1AK60-3RT2026-1AK60_120V

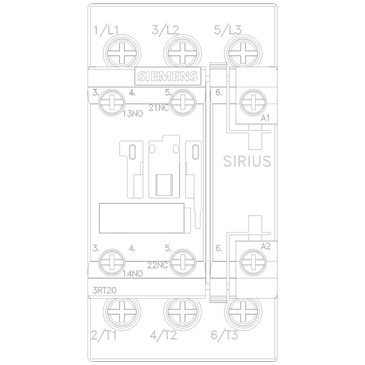

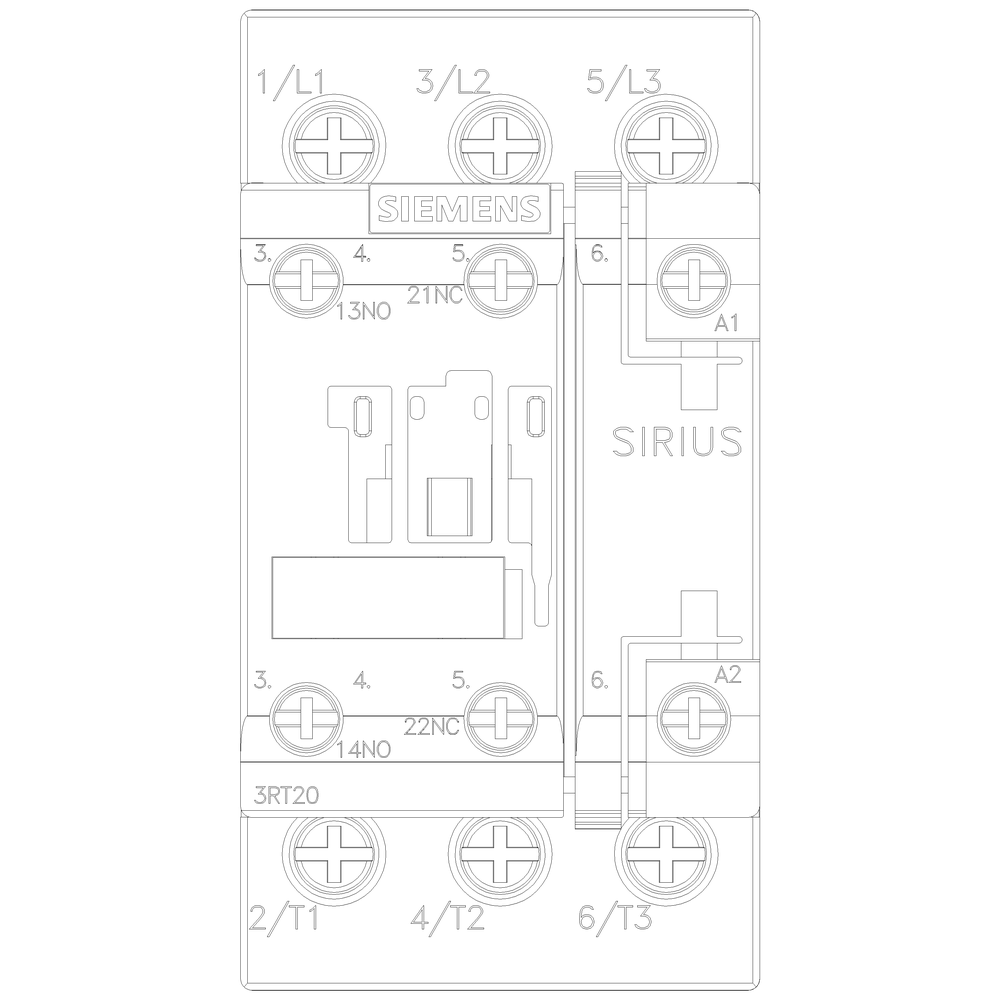

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20261AK60
Overview Details for 3RT20261AK60
Specifications
Item Number | 3RT20261AK60 |
Brand | Siemens Electrical |
Height | 3.600 IN |
Length | 4.150 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated control supply voltage Us at AC 60HZ | 120 V |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 25 A |
Rated operation current Ie at AC-4; 400 V | 15.5 A |
Rated operation power at AC-3; 400 V | 11 kW |
Rated operation power NEMA | 11.032481249 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 1.010 LB |
Width | 2.200 IN |
