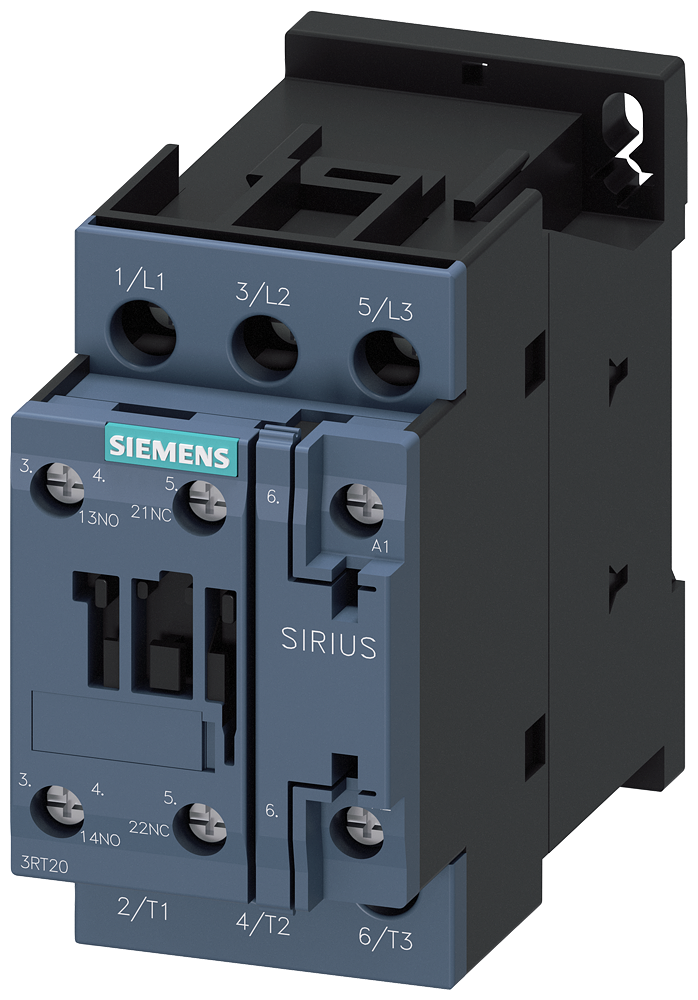

3RT2026-1AD20 | CONTACTOR 25A 42VAC 1NO/1NC SCRW | Siemens Electrical

power contactor, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole, 42 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal

Brand: Siemens ElectricalSKU: 3RT2026-1AD20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT2026-1AD20

Item Number	3RT2026-1AD20
Brand	Siemens Electrical
Height	4.180 IN
Length	3.630 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	42 V
Rated control supply voltage Us at AC 60HZ	42 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.900 LB
Width	2.130 IN
