Documents: 3RT20252NP30
3RT20252NP30 | CONTACTOR S0 16A 200-280VUC 1NO/1NC SPRG | Siemens Electrical
CONTACTOR, AC-3, 7.5KW/400V, 1NO+1NC, AC(40-60HZ)/DC ACTUAT. , UC 200...280V, 3-POLE, SZ S0 SPRING-LOADED TERMINAL

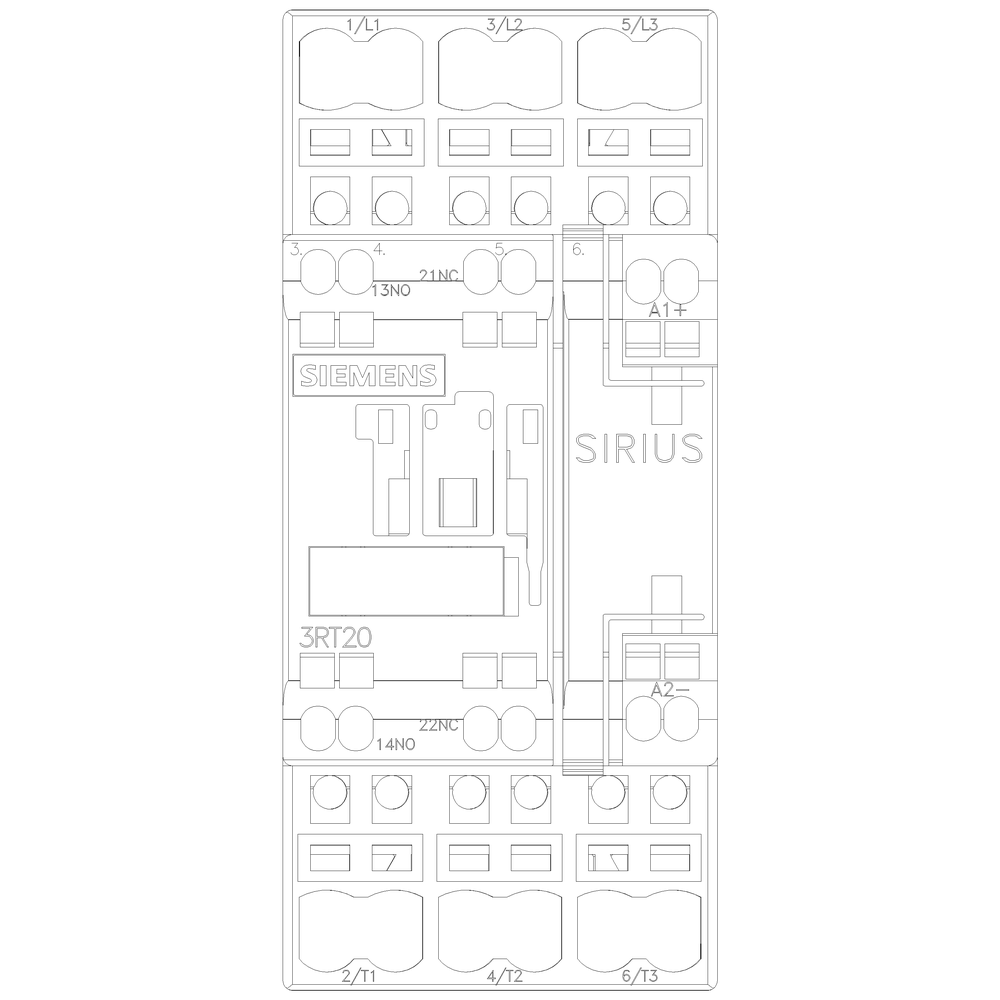

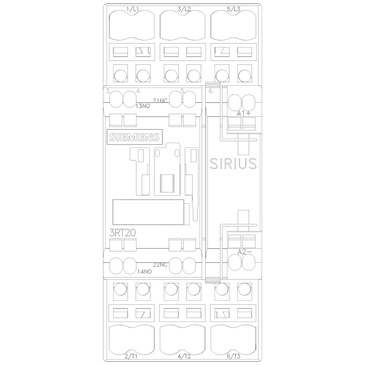

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20252NP30
Overview Details for 3RT20252NP30
Specifications
Item Number | 3RT20252NP30 |
Brand | Siemens Electrical |
Height | 4.570 IN |
Length | 4.260 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 200 V |
Rated control supply voltage Us at AC 60HZ | 200 V |
Rated control supply voltage Us at DC | 200 V |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 17 A |
Rated operation current Ie at AC-4; 400 V | 15.5 A |
Rated operation power at AC-3; 400 V | 7.5 kW |
Rated operation power NEMA | 7.354987499 kW |
Type of electrical connection of main circuit | Spring clamp connection |
Voltage type for actuating | AC/DC |
Weight | 1.27600 LB |
Width | 2.130 IN |
