3RT20252KC80 | CONTACTOR S0 16A 34VDC 1NO/1NC SPRG | Siemens Electrical

COUPLING RELAY, AC-3, 7.5KW/400V, 1NO+1NC, DC 34V, W. PLUGGED-IN VARISTOR 3-POLE, SZ S0 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20252KC80

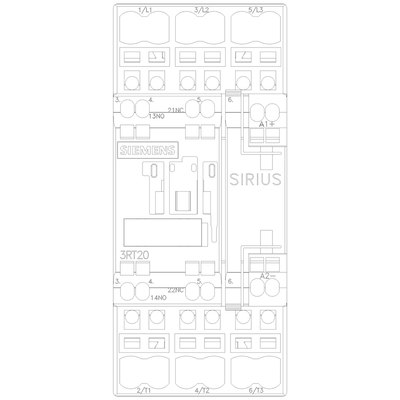

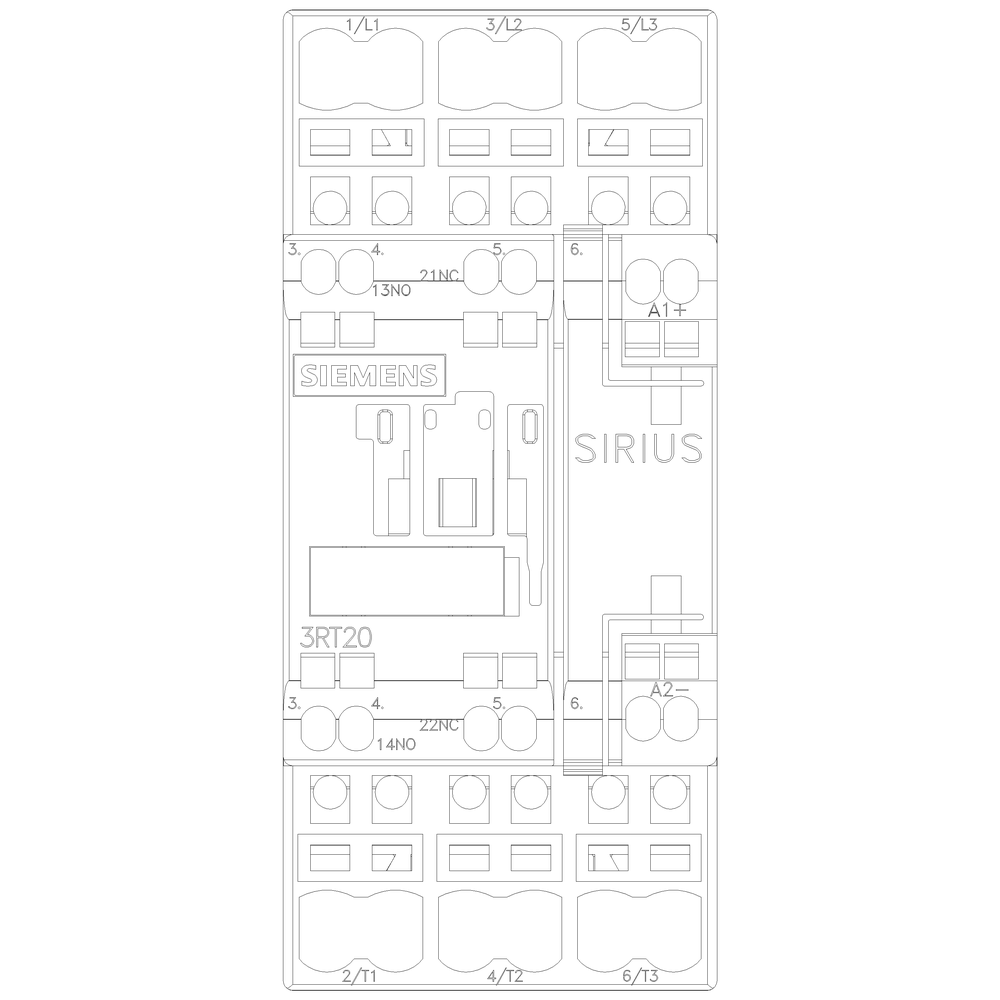

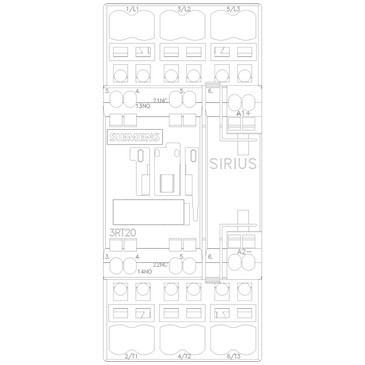

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20252KC80

Item Number	3RT20252KC80
Brand	Siemens Electrical
Height	4.56700 IN
Length	4.33100 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	34 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	17 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.41800 LB
Width	2.16600 IN
