3RT20252AP00 | CONTACTOR S0 16A 230VAC 1NO/1NC SPRG | Siemens Electrical

Contactor, AC-3, 7.5KW/400V, 1NO+1NC, AC 230v 50HZ, 3-pole, sz s0 spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20252AP00
Siemens Electrical | 3RT20252AP00

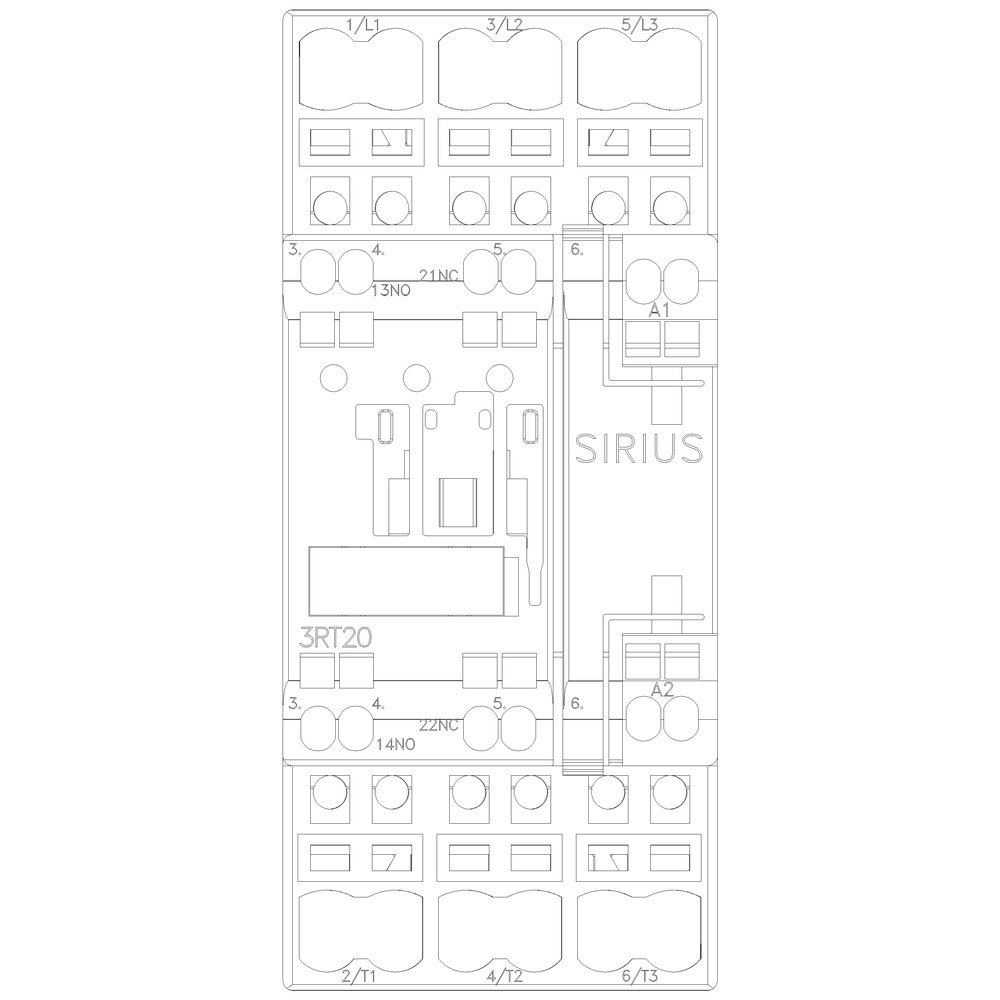

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20252AP00

Overview Details for 3RT20252AP00

Specifications

Item Number 3RT20252AP00
Brand Siemens Electrical
Height 4.180 IN
Length 4.260 IN
Modular version TRUE
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 1
Number of main contacts as normally open contact 3
Rated control supply voltage Us at AC 50HZ 230 V
Rated operation current Ie at AC-1; 400 V 40 A
Rated operation current Ie at AC-3; 400 V 17 A
Rated operation current Ie at AC-4; 400 V 15.5 A
Rated operation power at AC-3; 400 V 7.5 kW
Rated operation power NEMA 7.354987499 kW
Type of electrical connection of main circuit Spring clamp connection
Voltage type for actuating AC
Weight 0.96800 LB
Width 2.130 IN
