3RT20251NF30 | CONTACTOR S0 16A 95-130VUC 1NO/1NC SCRW | Siemens Electrical

CONTACTOR, AC-3, 7.5KW/400V, 1NO+1NC, AC(40-60HZ)/DC ACTUAT. , UC 95...130V, 3-POLE, SZ S0 SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20251NF30

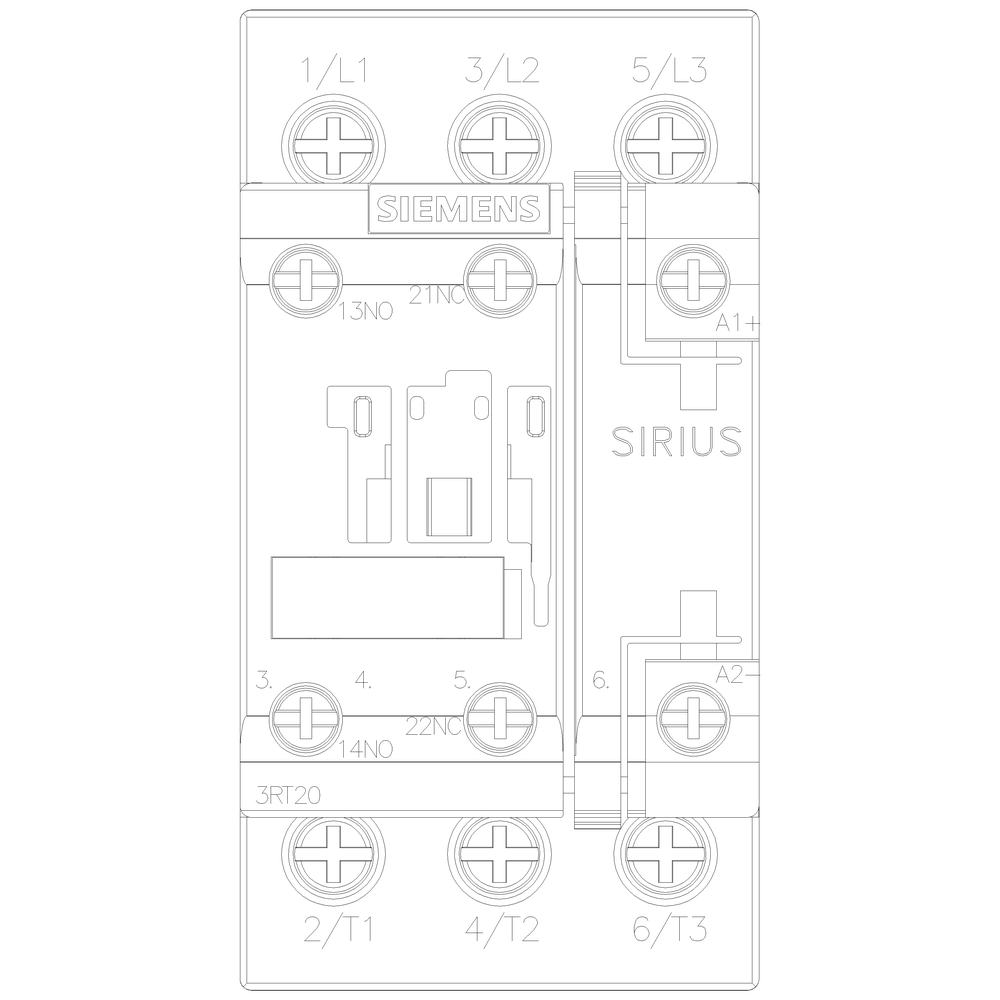

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20251NF30

Item Number	3RT20251NF30
Brand	Siemens Electrical
Height	4.570 IN
Length	3.630 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	95 V
Rated control supply voltage Us at AC 60HZ	95 V
Rated control supply voltage Us at DC	95 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	17 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	1.210 LB
Width	2.130 IN
