3RT20251FB480ME2 | CONTACTOR.AC3:7.5KW 3NO+3NC DC24V W.DIO | Siemens Electrical

Contactor. AC-3. 7.5KW/400v. 3NO+3ncw.3rh2911-1xa22-0ma0 w.integr.diode DC 24 v. 3-pole. sz s0 screw terminal

Brand: Siemens ElectricalSKU: 3RT20251FB480ME2

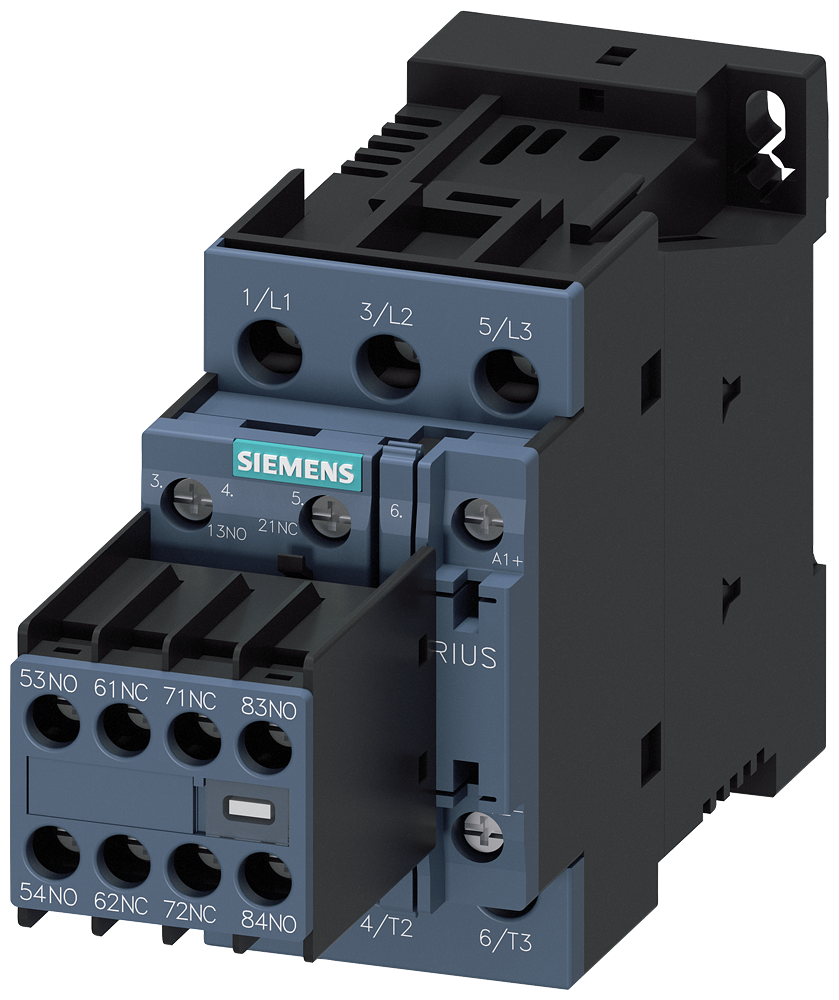

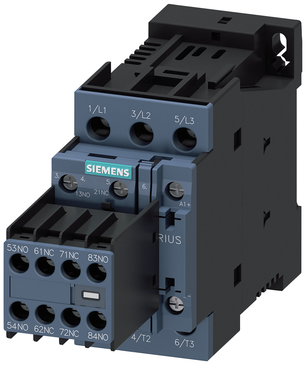

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20251FB480ME2

Item Number	3RT20251FB480ME2
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	3
Number of auxiliary contacts as normally open contact	3
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	17 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	1.43800 LB
