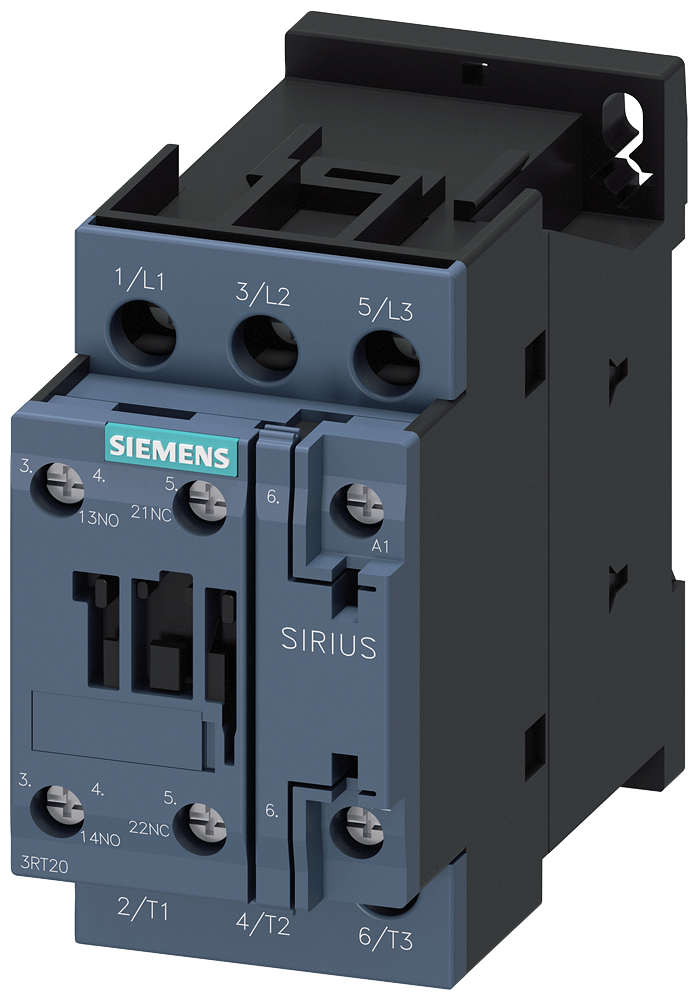

3RT20251AP60 | CONTACTOR S0 16A 240VAC 1NO/1NC SCRW | Siemens Electrical

Contactor, AC-3, 7.5KW/400V, 1NO+1NC, AC 220v 50HZ, 240v 60HZ 3-pole, sz s0 screw terminal

Brand: Siemens ElectricalSKU: 3RT20251AP60

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20251AP60

Item Number	3RT20251AP60
Brand	Siemens Electrical
Height	3.550 IN
Length	1.700 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	240 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	17 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.750 LB
Width	3.750 IN
