Documents: 3RT20251AK64

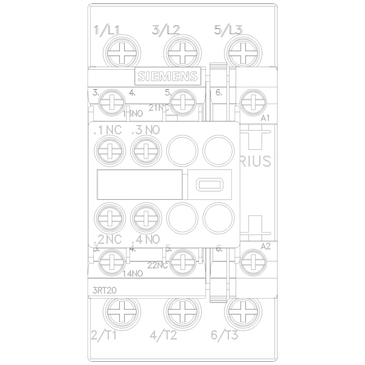

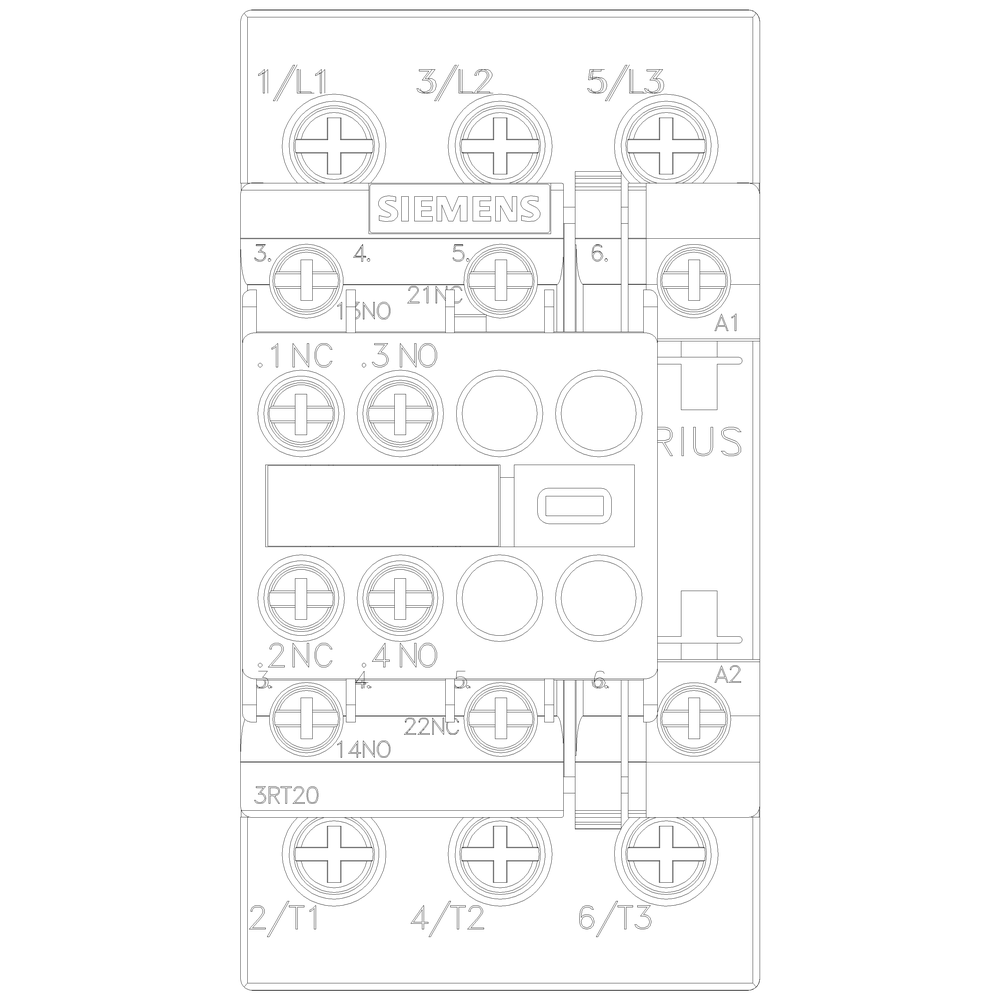

3RT20251AK64 | CONTACTOR S0 16A 120VAC 2NO/2NC SCRW | Siemens Electrical
CONTACTOR, AC-3, 7.5KW/400V, 2NO+2NC, AC 110V 50HZ 120V 60HZ, 3-POLE, SZ S0 SCREW TERMINAL REMOVABLE AUX. SWITCH
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20251AK64
Overview Details for 3RT20251AK64
Specifications
Item Number | 3RT20251AK64 |
Brand | Siemens Electrical |
Height | 5.870 IN |
Length | 3.630 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated control supply voltage Us at AC 60HZ | 120 V |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 17 A |
Rated operation current Ie at AC-4; 400 V | 15.5 A |
Rated operation power at AC-3; 400 V | 7.5 kW |
Rated operation power NEMA | 7.354987499 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 1.01200 LB |
Width | 2.130 IN |
