3RT20244AR60 | CONTACTOR S0 12A 400VAC 1NO/1NC R LUG | Siemens Electrical

CONTACTOR, AC-3, 5.5KW/400V, 1NO+1NC, AC 400V 50HZ, 400...440V 60HZ, 3-POLE, SZ S0 RING CABLE LUG CONNECTION

Brand: Siemens ElectricalSKU: 3RT20244AR60

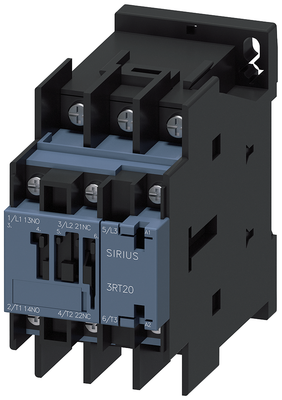

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20244AR60

Item Number	3RT20244AR60
Brand	Siemens Electrical
Height	4.180 IN
Length	3.630 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	400 V
Rated control supply voltage Us at AC 60HZ	440 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	12.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Other
Voltage type for actuating	AC
Weight	0.85800 LB
Width	2.130 IN
