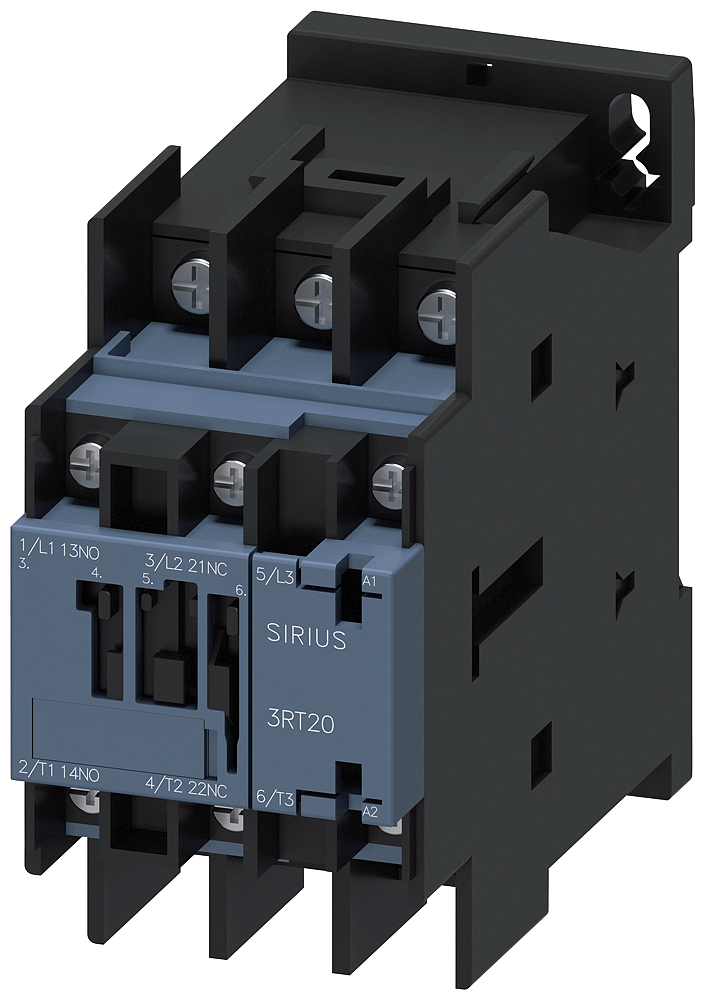

3RT20244AC20 | CONTACTOR S0 12A 24VAC 1NO/1NC R LUG | Siemens Electrical

CONTACTOR, AC-3, 5.5KW/400V, 1NO+1NC, AC 24V 50/60HZ, 3-POLE, SZ S0 SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20244AC20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20244AC20

Item Number	3RT20244AC20
Brand	Siemens Electrical
Brand Name	Siemens
Coil Power Rating	-99999 W / -99999 W
Coil Voltage	AC
Connection	Ring cable lug connection / ring cable connection
Contact Configuration	-99999
Contact Rating	A600 / Q600
Height	4.260 IN
Length	3.630 IN
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail
Operating Cycles	10
Operating Temperature	-25 °C ... 60 °C
Phase	3
Power Factor	0.8
Size	0.045 m / 0.085 m / 0.097 m
Special Features	Mirror contact acc. to IEC 60947-4-1 / Mirror contact acc. t
Sub Brand	SIRIUS
Type	Power contactor
Weight	0.85800 LB
Width	2.170 IN
