Documents: 3RT20242BM40
3RT20242BM40 | CONTACTOR S0 12A 220VDC 1NO/1NC SPRG | Siemens Electrical
Contactor, AC-3, 5.5KW/400V, 1NO+1NC, DC 220V, 3-pole, sz s0 spring-loaded terminal

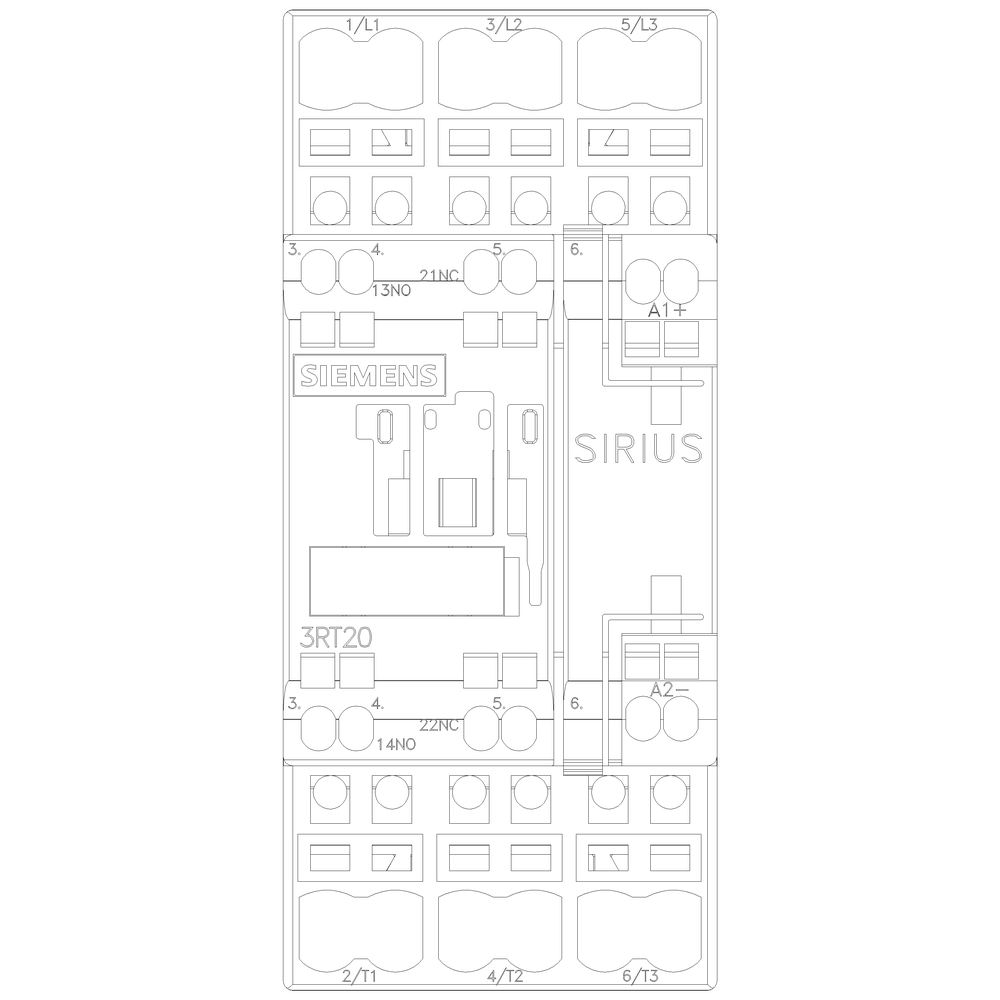

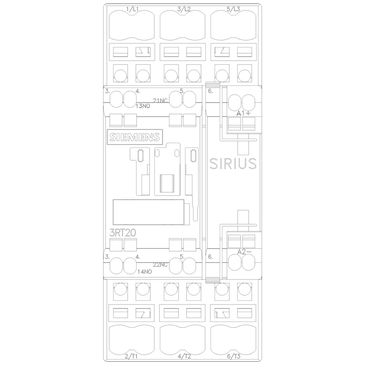

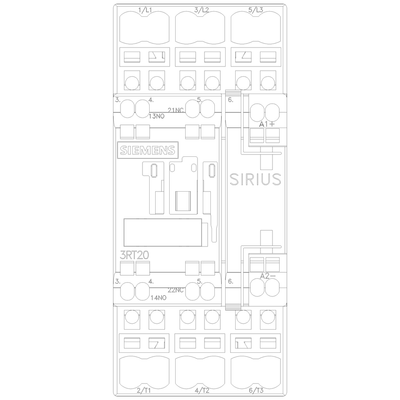

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20242BM40
Overview Details for 3RT20242BM40
Specifications
Item Number | 3RT20242BM40 |
Brand | Siemens Electrical |
Height | 4.570 IN |
Length | 4.260 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at DC | 220 V |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 0 |
Rated operation current Ie at AC-4; 400 V | 12.5 A |
Rated operation power at AC-3; 400 V | 5.5 kW |
Rated operation power NEMA | 5.516240624 kW |
Type of electrical connection of main circuit | Spring clamp connection |
Voltage type for actuating | DC |
Weight | 1.36400 LB |
Width | 2.130 IN |
