3RT20242BF40 | CONTACTOR S0 12A 110VDC 1NO/1NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 5.5KW/400V, 1NO+1NC, DC 110V, 3-POLE, SZ S0 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20242BF40

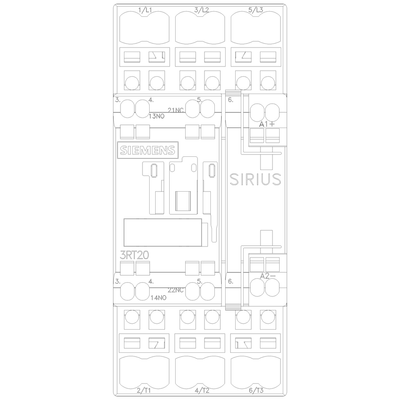

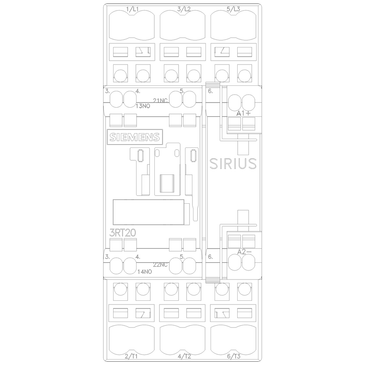

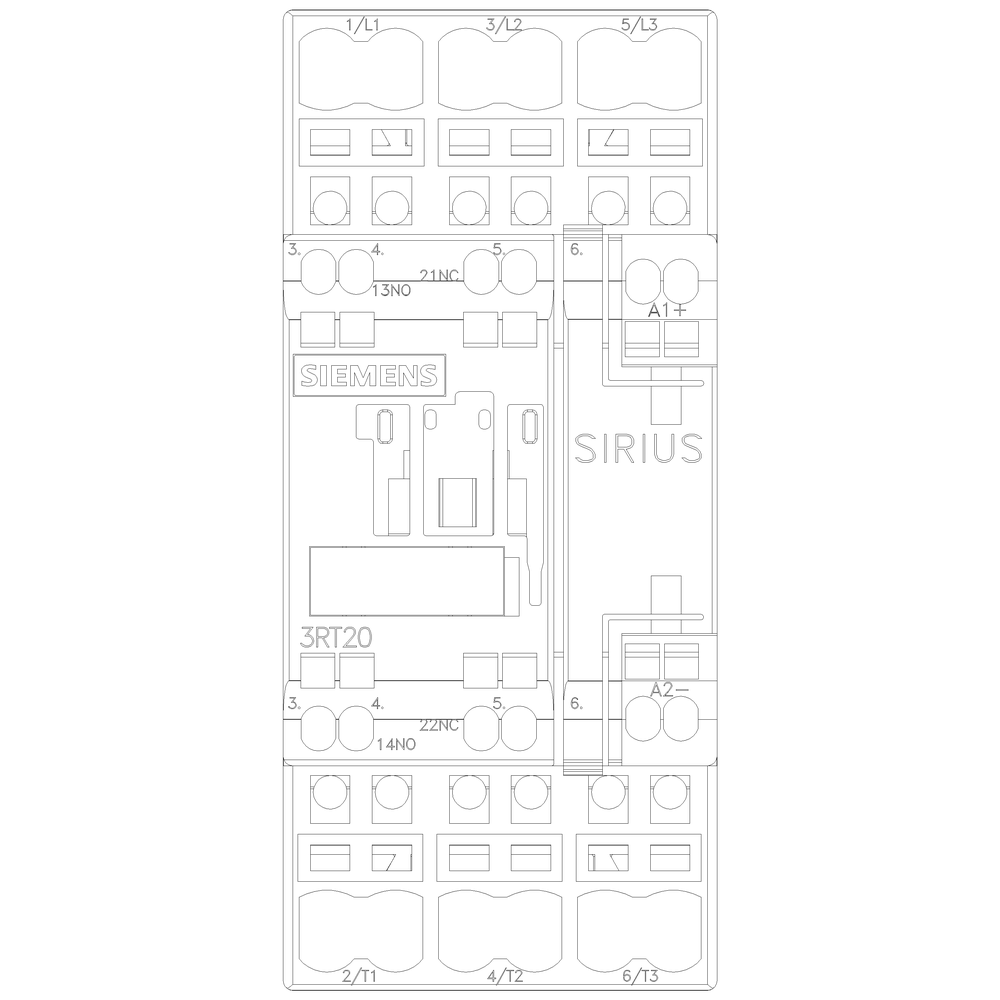

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20242BF40

Item Number	3RT20242BF40
Brand	Siemens Electrical
Height	4.570 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	110 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	12.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.36400 LB
Width	2.130 IN
