3RT20242BB40 | CONTACTOR DC 5.5kW 24V 3POLE SZ S0 | Siemens Electrical

CONTACTOR_DC 3RT1024-3BB40-3RT1024-3BB40_DC_5.5kW_24V

Brand: Siemens ElectricalSKU: 3RT20242BB40

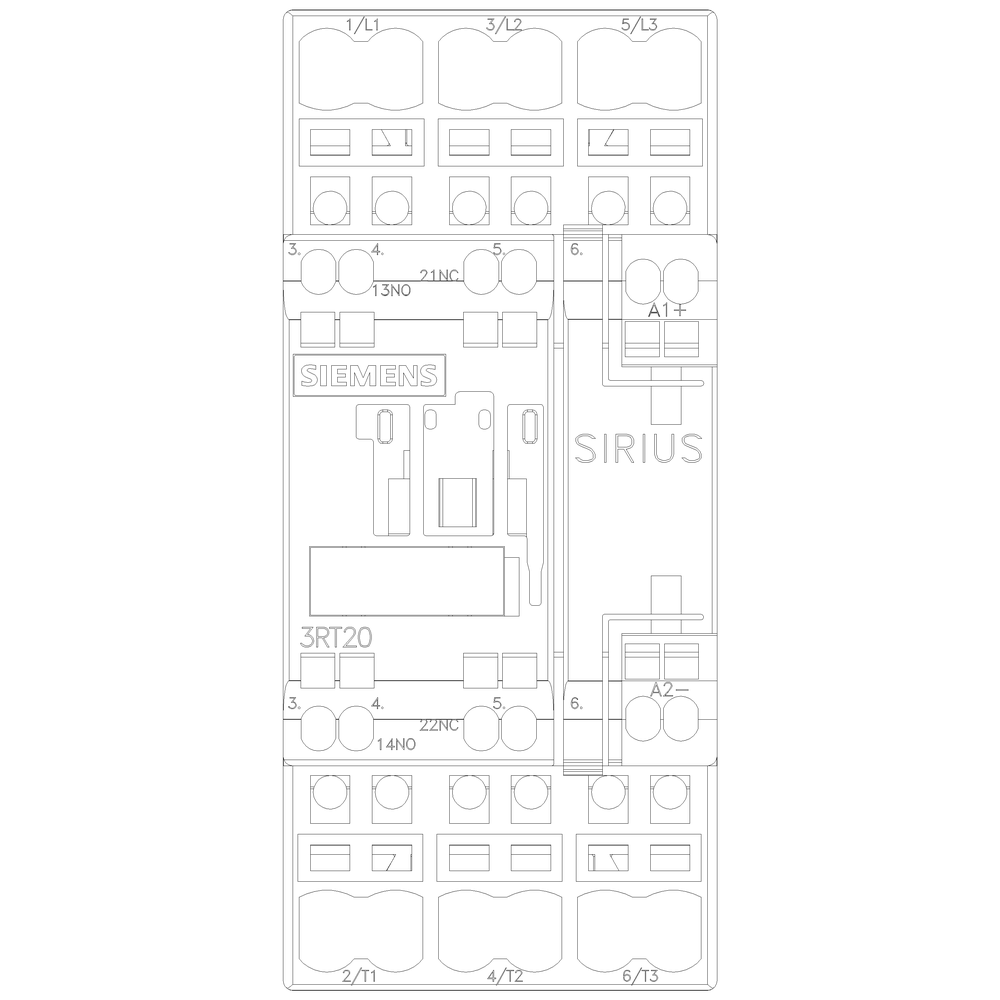

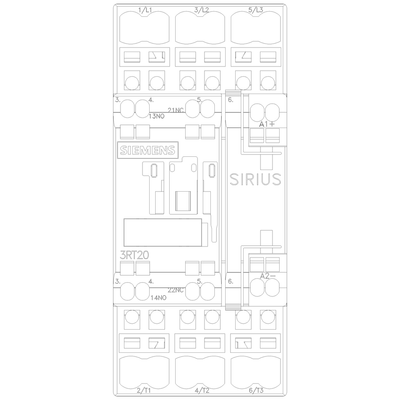

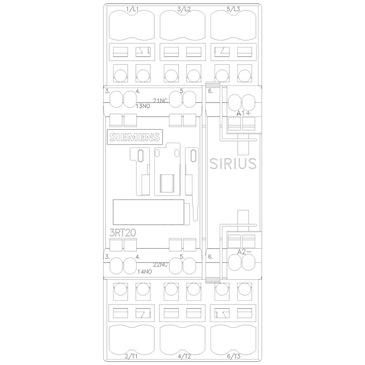

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20242BB40

Item Number	3RT20242BB40
Brand	Siemens Electrical
Height	4.250 IN
Length	4.100 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	12.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.400 LB
Width	1.700 IN
