3RT20242AK643MA0 | CONTACTOR S0 12A 120VAC 2NO/2NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 5.5KW/400V, 2NO+2NC AC110V 50HZ/120V 60HZ 3-POLE, SZ S0 SPRING-LOADED TERMINAL PERMANENT AUX. SWITCH FOR SUVA APPLICATIONS

Brand: Siemens ElectricalSKU: 3RT20242AK643MA0

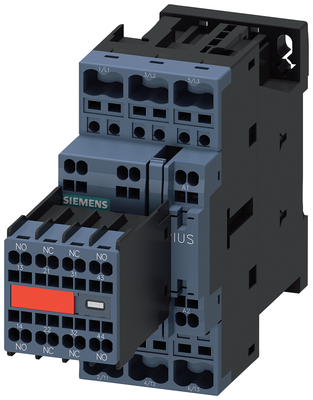

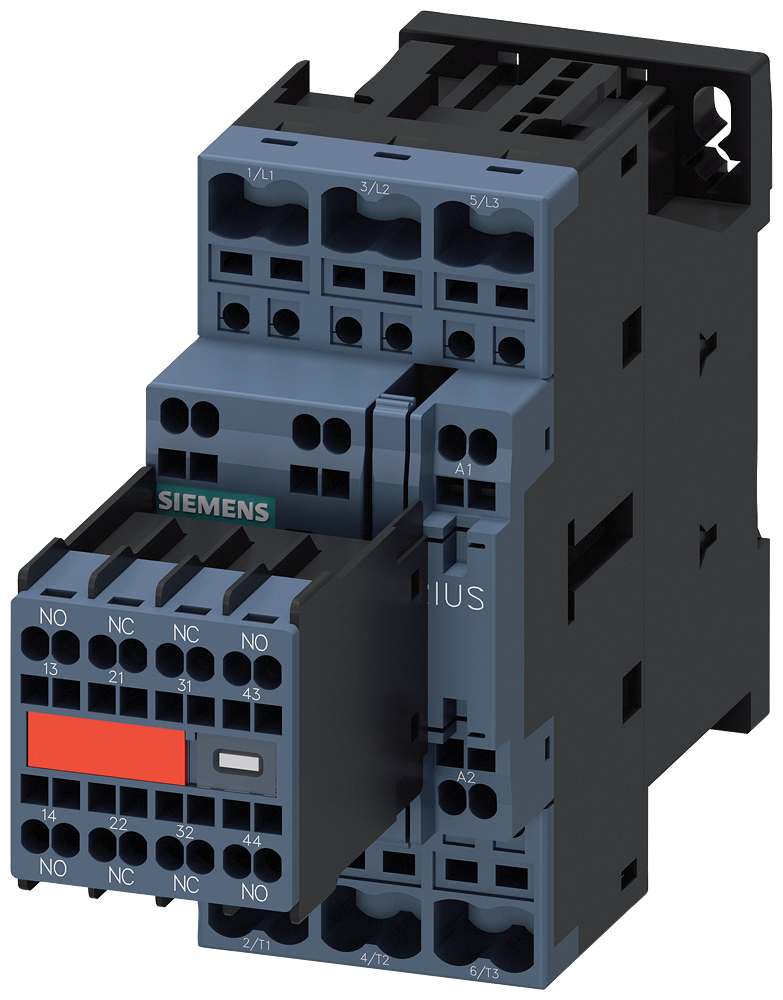

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20242AK643MA0

Item Number	3RT20242AK643MA0
Brand	Siemens Electrical
Brand Name	Siemens
Coil Power Rating	-99999 W / -99999 W
Coil Voltage	AC
Connection	spring-loaded terminals / spring-loaded terminals
Contact Configuration	-99999
Contact Rating	A600 / Q600
Height	2.170 IN
Length	6.030 IN
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail
Operating Cycles	10
Operating Temperature	-25 °C ... 60 °C
Phase	3
Power Factor	0.8
Size	0.045 m / 0.102 m / 0.144 m
Special Features	Mirror contact acc. to IEC 60947-4-1 / Mirror contact acc. t
Sub Brand	SIRIUS
Type	Power contactor
Weight	0.96800 LB
Width	4.260 IN
