3RT20242AG24 | CONTACTOR S0 12A 110VAC 2NO/2NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 5.5KW/400V, 2NO+2NC, AC110V 50/60HZ, 3-POLE, SZ S0 SPRING-LOADED TERMINAL REMOVABLE AUX. SWITCH

Brand: Siemens ElectricalSKU: 3RT20242AG24

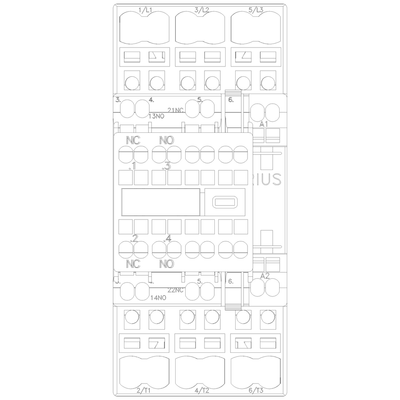

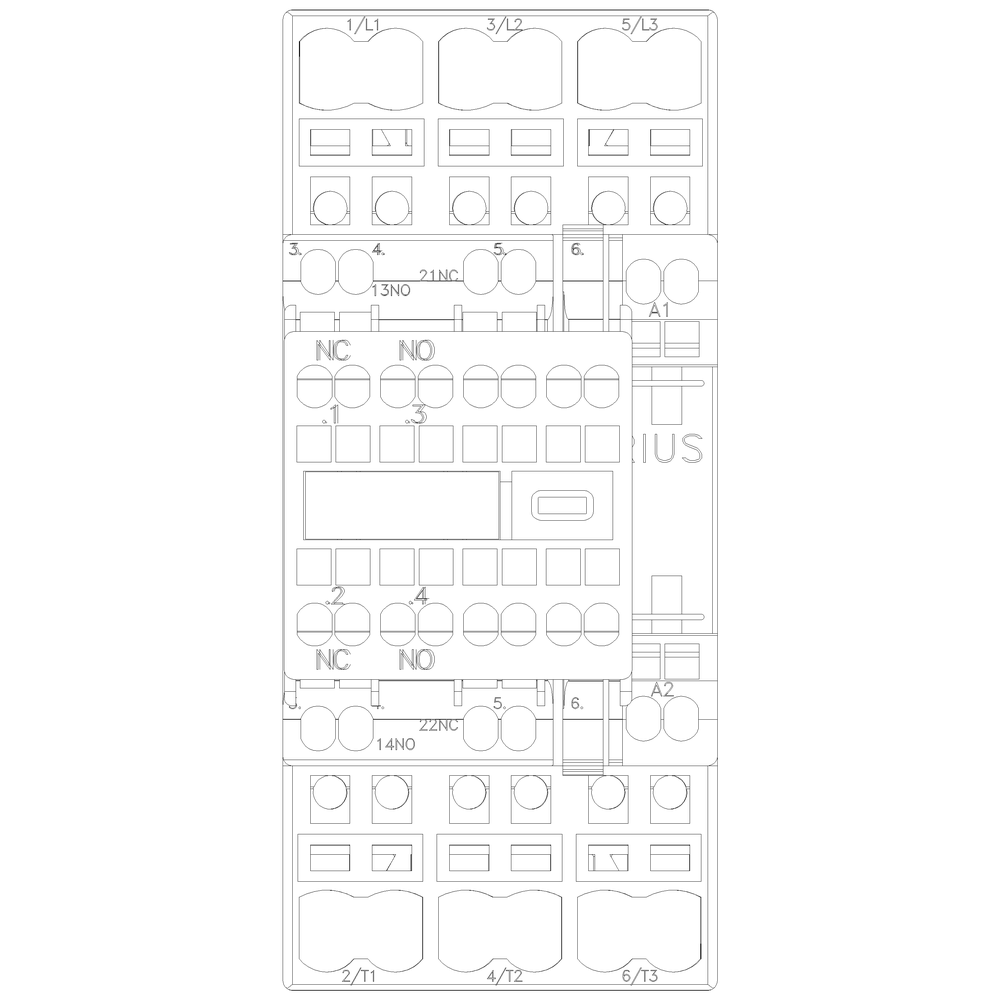

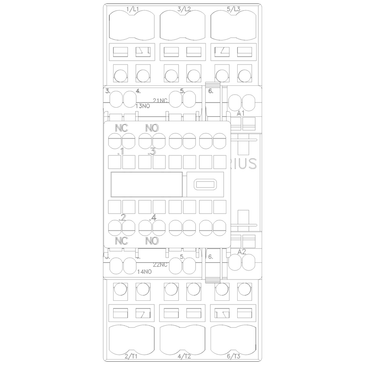

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20242AG24

Item Number	3RT20242AG24
Brand	Siemens Electrical
Height	6.030 IN
Length	4.3 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	110 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	12.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.96800 LB
Width	2.130 IN
