Documents: 3RT20241FB443MA1

Datasheet

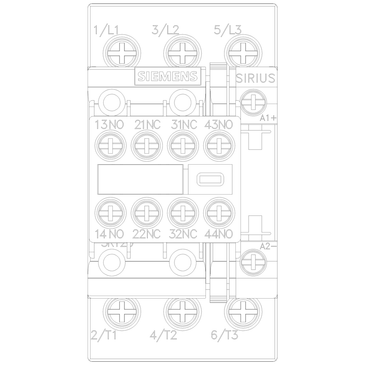

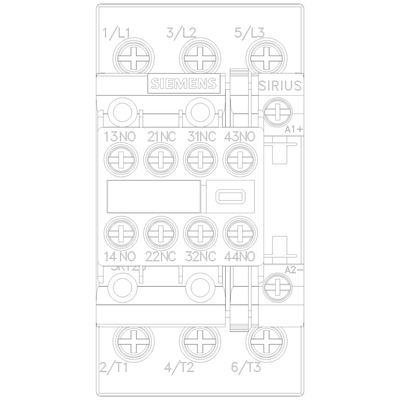

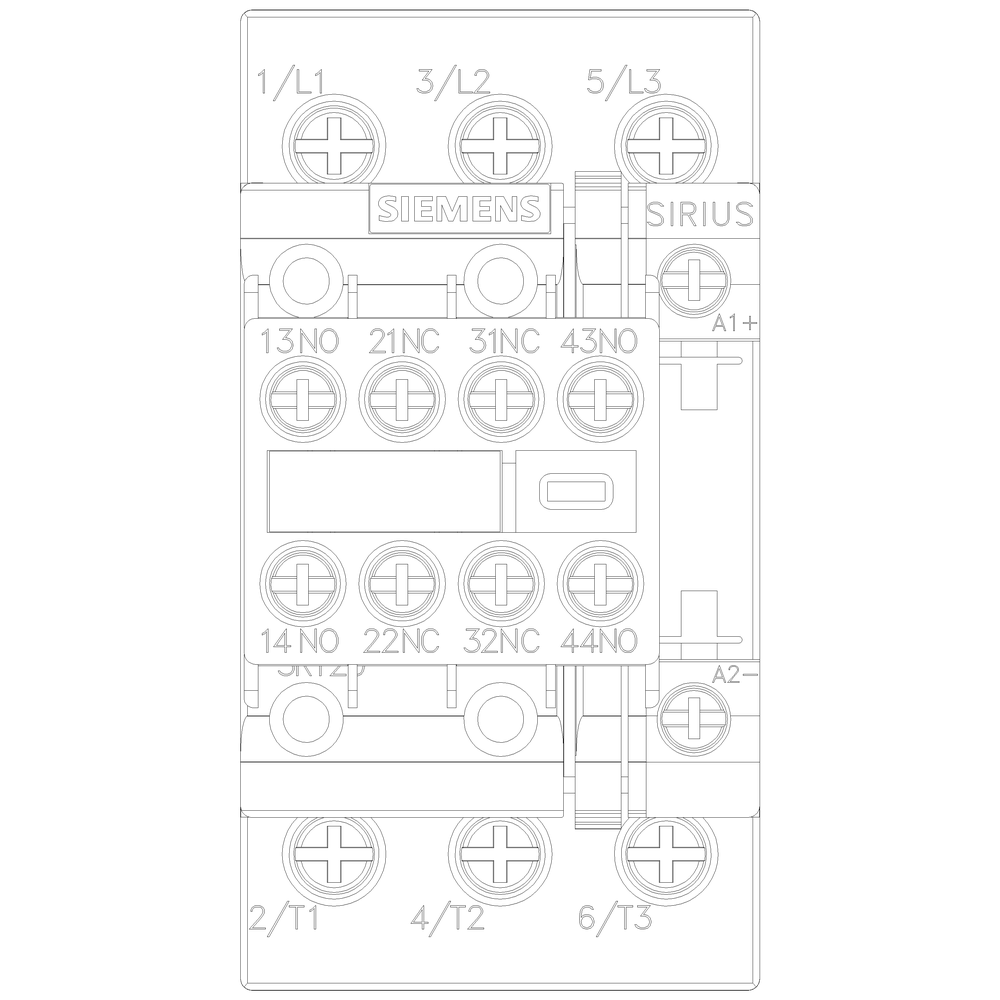

3RT20241FB443MA1 | CONTACTOR S0 12A 24VDC 2NO/2NC SCRW VRT | Siemens Electrical

CONTACTOR, AC-3, 5.5KW/400V, 2NO+2NC, DC 24V, W. PLUGGED-IN DIODE ASSEMBLIES 3-POLE, SZ S0 SCREW TERMINAL PERMANENT AUX. SWITCH UPRIGHT MOUNTING POSITION

Brand: Siemens ElectricalSKU: 3RT20241FB443MA1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20241FB443MA1

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20241FB443MA1

Specifications

Item Number	3RT20241FB443MA1
Brand	Siemens Electrical
Height	3.66200 IN
Length	6.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	12.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	1.41300 LB
Width	2.16600 IN
