Documents: 3RT20232FB443MA0

Datasheet

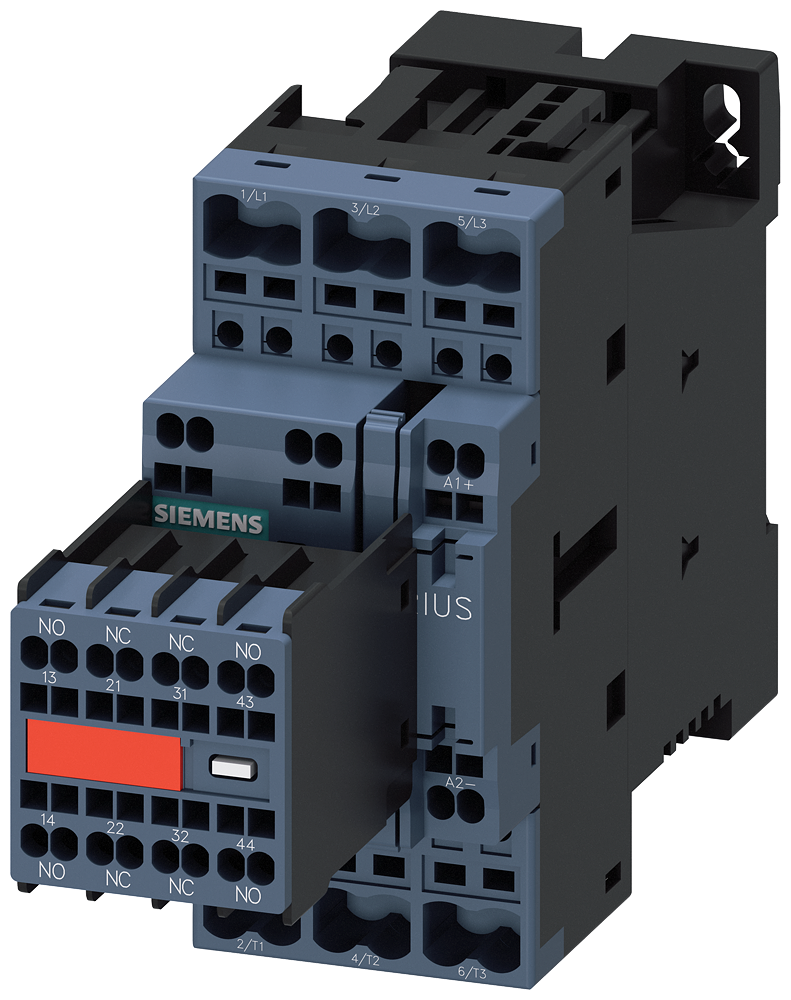

3RT20232FB443MA0 | CONTACTOR S0 9A 24VDC 2NO/2NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 4KW/400V, 2NO+2NC, DC 24V, W. PLUGGED-IN DIODE ASSEMBLIES 3-POLE, SZ S0 SPRING-LOADED TERMINAL PERMANENT AUX. SWITCH FOR SUVA APPLICATIONS

Brand: Siemens ElectricalSKU: 3RT20232FB443MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20232FB443MA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20232FB443MA0

Specifications

Item Number	3RT20232FB443MA0
Brand	Siemens Electrical
Height	6.420 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.36400 LB
Width	2.130 IN
