Documents: 3RT20232BB44
3RT20232BB44 | CONTACTOR S0 9A 24VDC 2NO/2NC SPRG | Siemens Electrical
Contactor, AC-3, 4KW/400V, 2NO+2NC, DC 24V, 3-pole, sz s0 spring-loaded terminal removable aux. switch

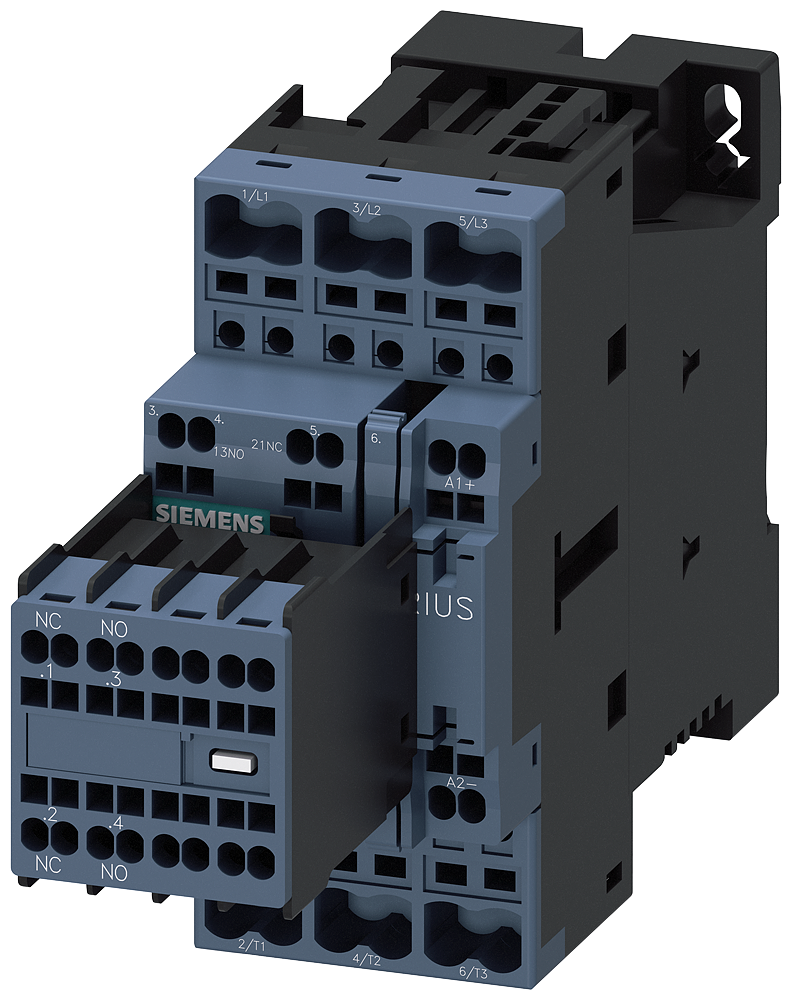

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20232BB44
Overview Details for 3RT20232BB44
Specifications
Item Number | 3RT20232BB44 |
Brand | Siemens Electrical |
Height | 6.420 IN |
Length | 4.260 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at DC | 24 V |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 0.375 |
Rated operation current Ie at AC-4; 400 V | 8.5 A |
Rated operation power at AC-3; 400 V | 4 kW |
Rated operation power NEMA | 3.677493749 kW |
Type of electrical connection of main circuit | Spring clamp connection |
Voltage type for actuating | DC |
Weight | 1.36400 LB |
Width | 2.130 IN |
