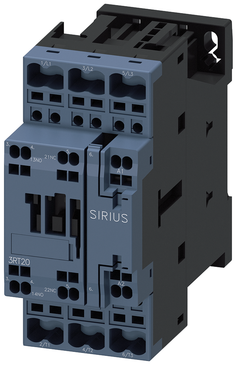

3RT20232AP60 | CONTACTOR S0 9A 240VAC 1NO/1NC SPRG | Siemens Electrical

Contactor, AC-3, 4KW/400V, 1NO+1NC, AC 220v 50HZ, 240v 60HZ 3-pole, sz s0 spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20232AP60

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20232AP60

Item Number	3RT20232AP60
Brand	Siemens Electrical
Height	4.180 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	240 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.96800 LB
Width	2.130 IN
