Documents: 3RT20232AL20
3RT20232AL20 | CONTACTOR S0 9A 230VAC 1NO/1NC SPRG | Siemens Electrical
CONTACTOR, AC-3, 4KW/400V, 1NO+1NC, AC 230V 50/60HZ, 3-POLE, SZ S0 SPRING-LOADED TERMINAL

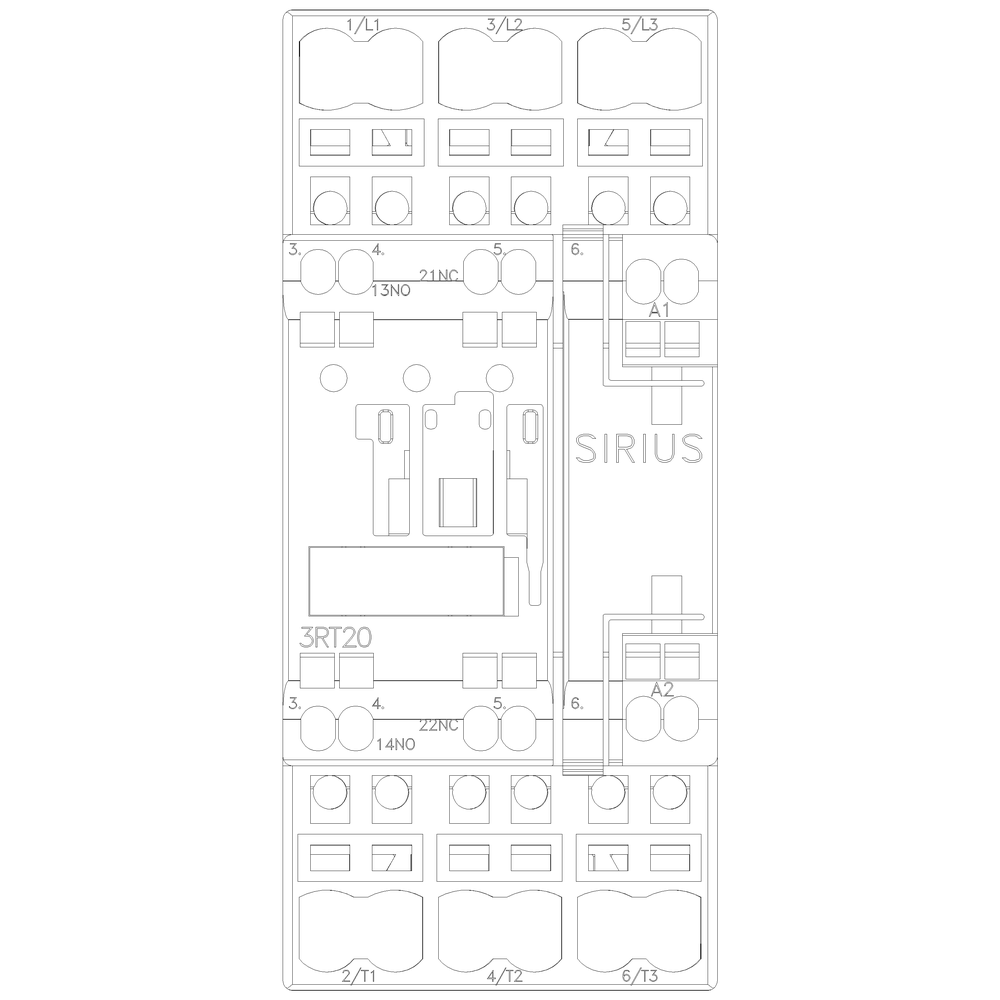

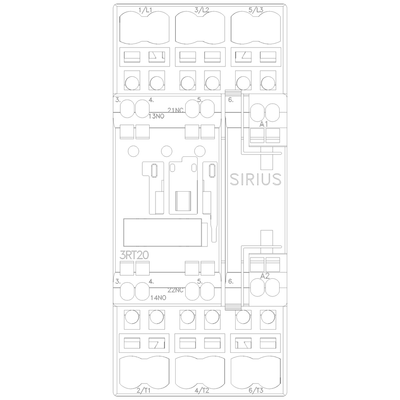

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20232AL20
Overview Details for 3RT20232AL20
Specifications
Item Number | 3RT20232AL20 |
Brand | Siemens Electrical |
Height | 4.180 IN |
Length | 4.260 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 230 V |
Rated control supply voltage Us at AC 60HZ | 230 V |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 0.375 |
Rated operation current Ie at AC-4; 400 V | 8.5 A |
Rated operation power at AC-3; 400 V | 4 kW |
Rated operation power NEMA | 3.677493749 kW |
Type of electrical connection of main circuit | Spring clamp connection |
Voltage type for actuating | AC |
Weight | 0.96800 LB |
Width | 2.130 IN |
