Documents: 3RT20231BM40
3RT20231BM40 | CONTACTOR S0 9A 220VDC 1NO/1NC SCRW | Siemens Electrical
CONT, AC-3,4KW/400V, 1NO+1NC, DC 2

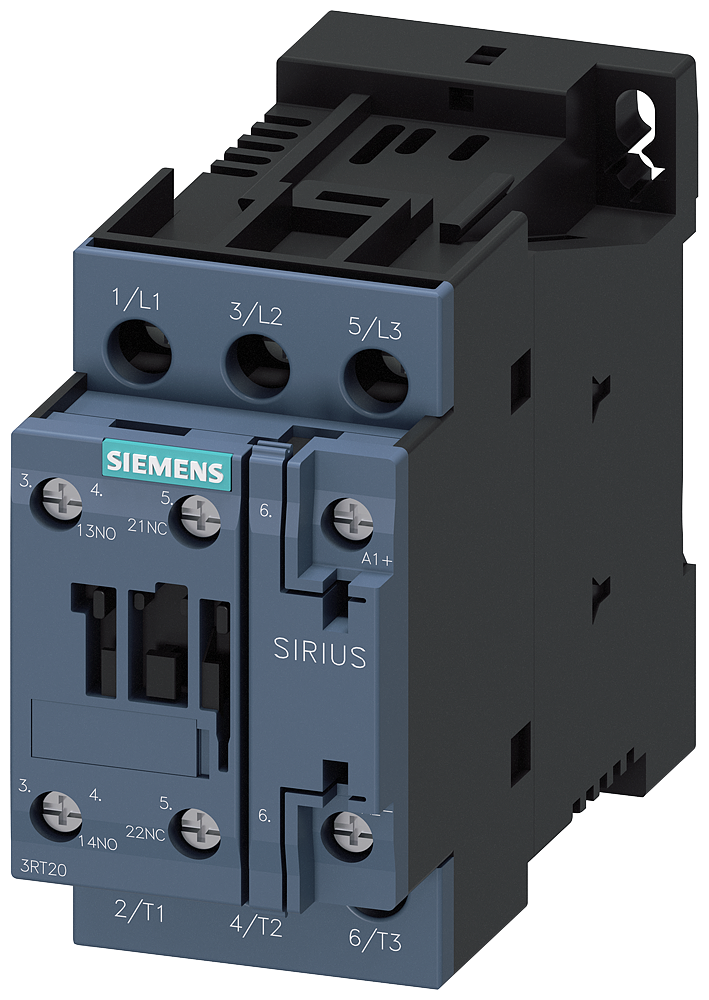

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20231BM40
Overview Details for 3RT20231BM40
Specifications
Item Number | 3RT20231BM40 |
Brand | Siemens Electrical |
Height | 4.570 IN |
Length | 3.630 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at DC | 220 V |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 0.375 |
Rated operation current Ie at AC-4; 400 V | 8.5 A |
Rated operation power at AC-3; 400 V | 4 kW |
Rated operation power NEMA | 3.677493749 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | DC |
Weight | 1.27600 LB |
Width | 2.130 IN |
