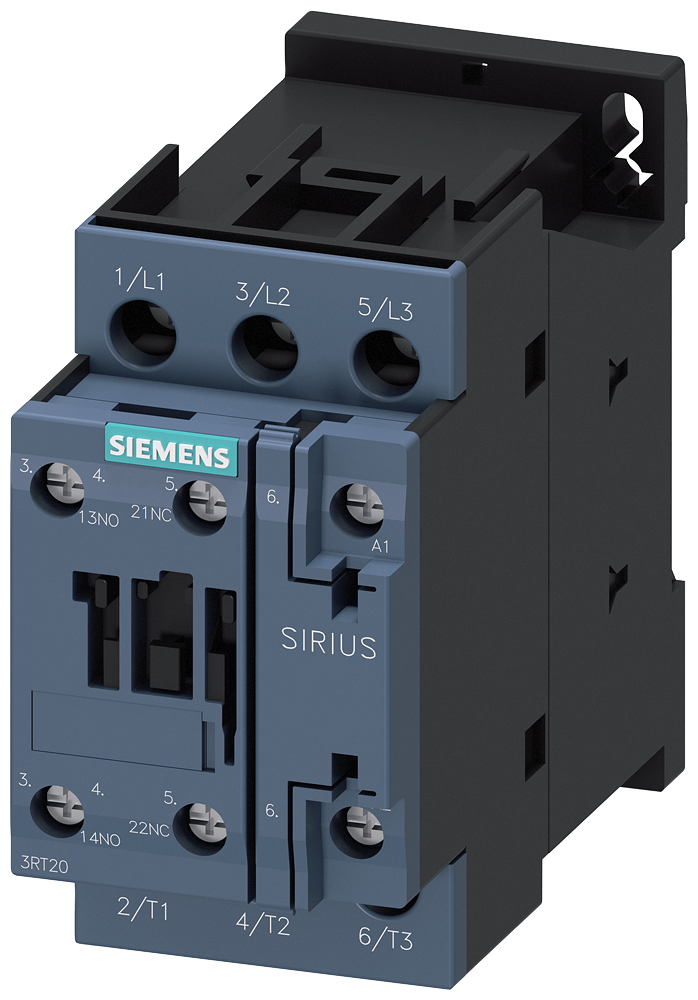

3RT20231AM20 | CONTACTOR S00 16A 24VDC 1NO SCRW | Siemens Electrical

Contactor, AC-3, 4KW/400V, 1NO+1NC, AC 208v 50/60HZ, 3-pole, sz s0 screw terminal

Brand: Siemens ElectricalSKU: 3RT20231AM20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20231AM20

Item Number	3RT20231AM20
Brand	Siemens Electrical
Height	2.100 IN
Length	4.5 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	208 V
Rated control supply voltage Us at AC 60HZ	208 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.860 LB
Width	4.450 IN
