3RT2023-2EC20 | CONTACTOR S0 9A 24VAC 1NO/1NC SPRG | Siemens Electrical

power contactor, AC-3 9 A, 4 kW / 400 V 1 NO + 1 NC, 24 V AC, 50 / 60 Hz 3-pole, Size S0 Spring-type terminal RC element 3RT2926-1CB00 integrated

Brand: Siemens ElectricalSKU: 3RT2023-2EC20

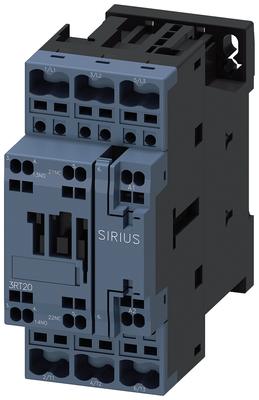

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT2023-2EC20

Item Number	3RT2023-2EC20
Brand	Siemens Electrical
Height	2.170 IN
Length	4.290 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	24 V
Rated control supply voltage Us at AC 60HZ	24 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	1 LB
Width	4.170 IN
