3RT20184AP61 | CONTACTOR S00 16A 240VAC 1NO R LUG | Siemens Electrical

CONTACTOR, AC-3, 7.5KW/400V, 1NO, AC 220V 50HZ / 240V 60HZ 3POLE, SZ. S00 SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20184AP61

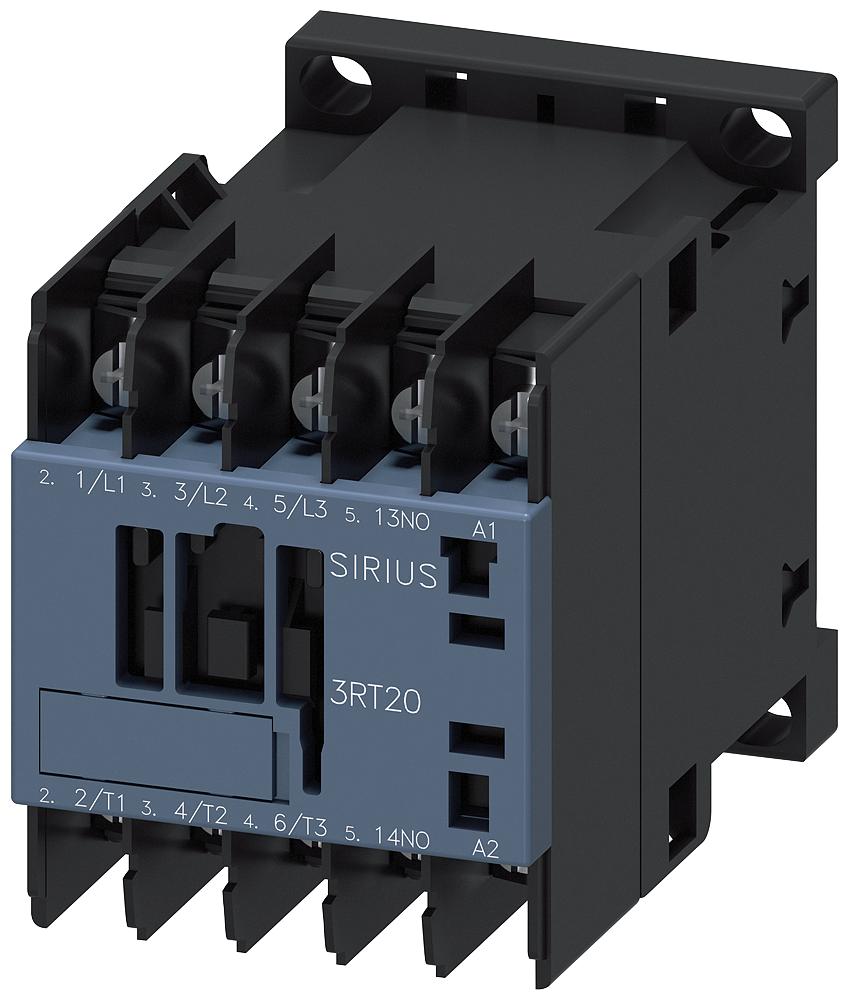

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20184AP61

Item Number	3RT20184AP61
Brand	Siemens Electrical
Connection type	Ring cable connection
max. rated AC voltage for controls (60 Hz)	240 volt
Max. rated AC voltage for controls; 50 Hz	220 volt
Number of making contacts and main contacts	3
Power loss per pole; current-dependent [PlIp]	2.2 watt
Power loss; static; current-independent [Pls]	5.9 watt
Rated current [In] for the power loss specification	16 ampere
Rated operating current Ie with AC-3; 400 V	16 ampere
Rated operating power with AC-3; 400 V	8 kilowatt
rated operational power AC-1 at 400 V	13 kilowatt
suitable for mounting onto standard rails	FALSE
suitable for series installation	TRUE
Weight	0.61600 LB
