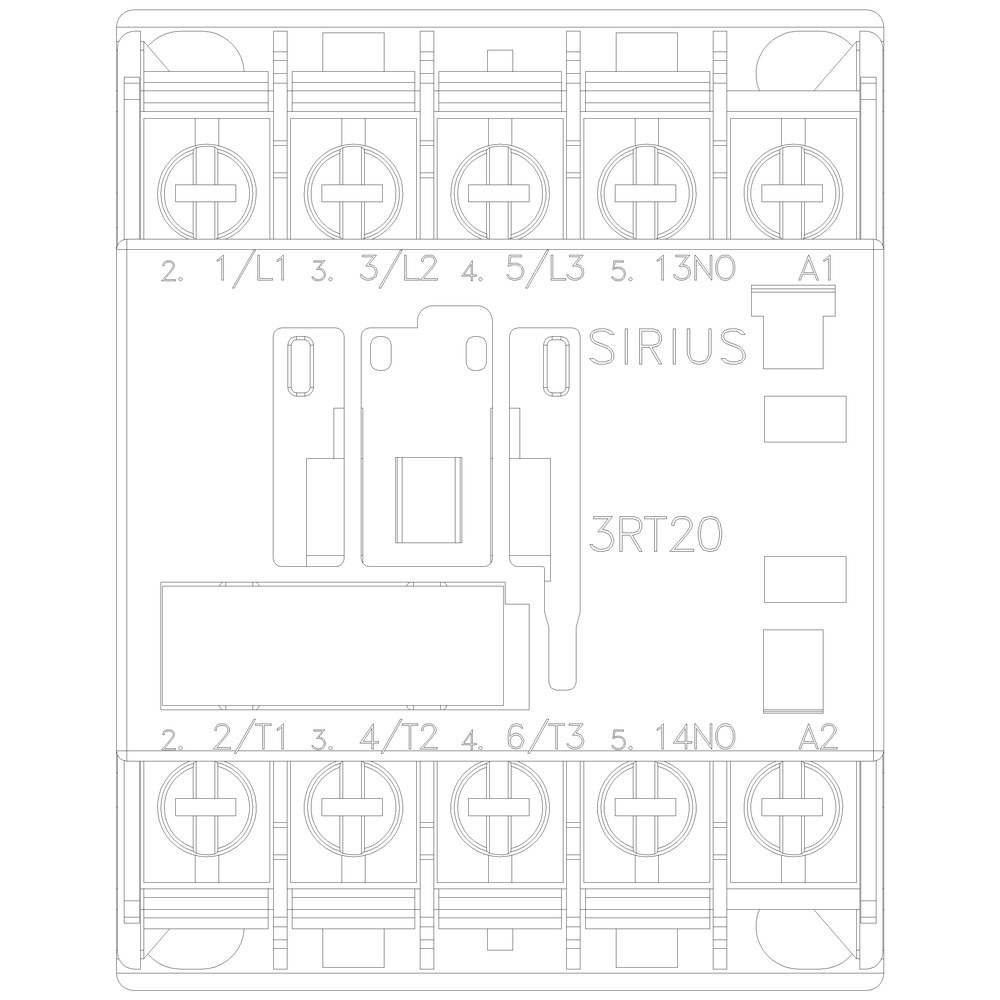

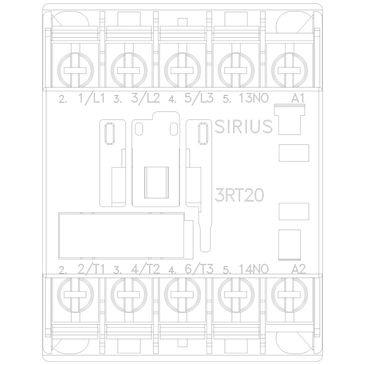

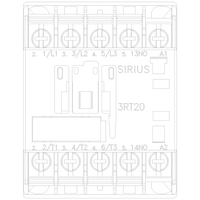

3RT20184AB01 | CONTACTOR S00 16A 24VAC 1NO R LUG | Siemens Electrical

CONTACTOR, AC-3, 7.5KW/400V, 1NO, AC 24V, 50/60 HZ, 3-POLE, SZ S00 SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20184AB01

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20184AB01

Item Number	3RT20184AB01
Brand	Siemens Electrical
Height	3.080 IN
Length	2.450 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	24 V
Rated control supply voltage Us at AC 60HZ	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	16 A
Rated operation current Ie at AC-4; 400 V	11.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Other
Voltage type for actuating	AC
Weight	0.48400 LB
Width	1.970 IN
