Documents: 3RT20182XB420LA2

Datasheet

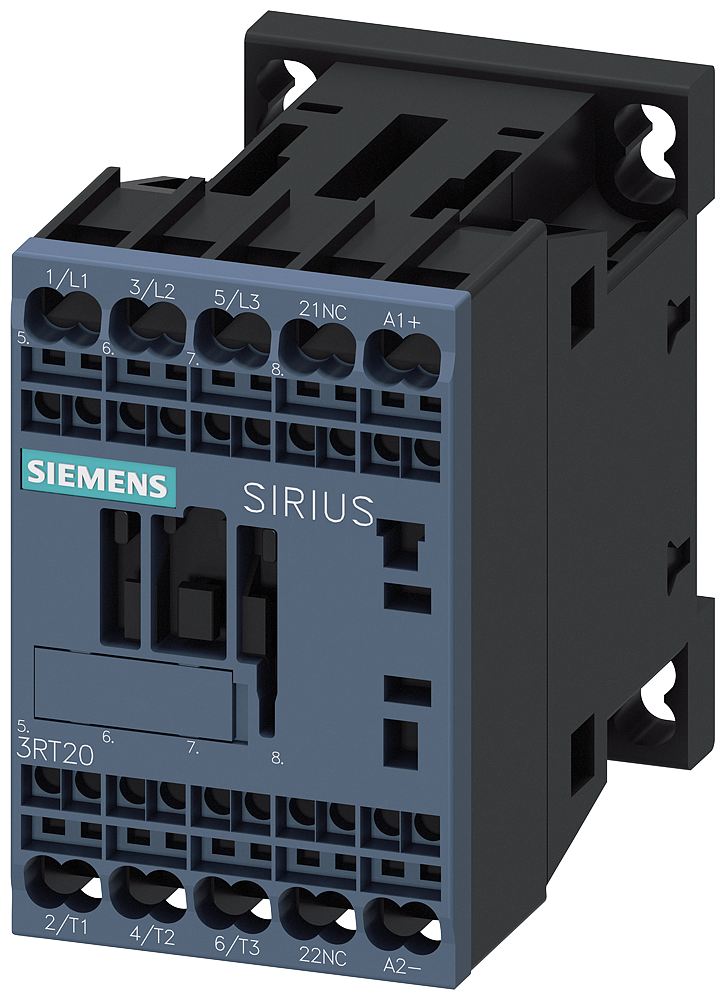

3RT20182XB420LA2 | CONTACTOR F.RAIL.AC3:7.5KW.24-34VDC. VAR | Siemens Electrical

Traction contactor. AC-3 16 A. 7.5 kW / 400 V 1 NC. 24-34 V DC. 0.7-1.25*Us with integrated varistor Size S00. Spring-type terminals suitable for PLC outputs

Brand: Siemens ElectricalSKU: 3RT20182XB420LA2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20182XB420LA2

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20182XB420LA2

Specifications

Item Number	3RT20182XB420LA2
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	16 A
Rated operation current Ie at AC-4; 400 V	11.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power at AC-4; 400 V	5.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.70600 LB
