3RT20182LB420LA0 | CONTACTOR RAIL S00 16A 24VDC 1NC SPRG | Siemens Electrical

CONT. F. RAILW. A., AC-3, 7.5KW 400V, DC 24V, 0,7...1,25*US, W.VARISTOR INTEGRATED, 3-POLE, SIZE S00, SPRING-TYPE TERM.

Brand: Siemens ElectricalSKU: 3RT20182LB420LA0

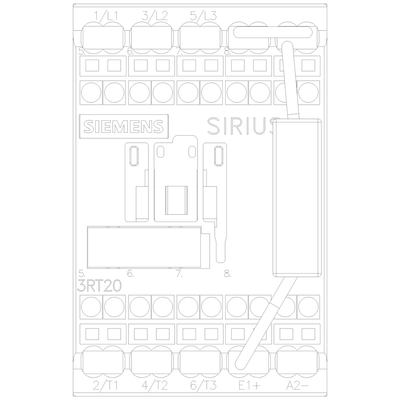

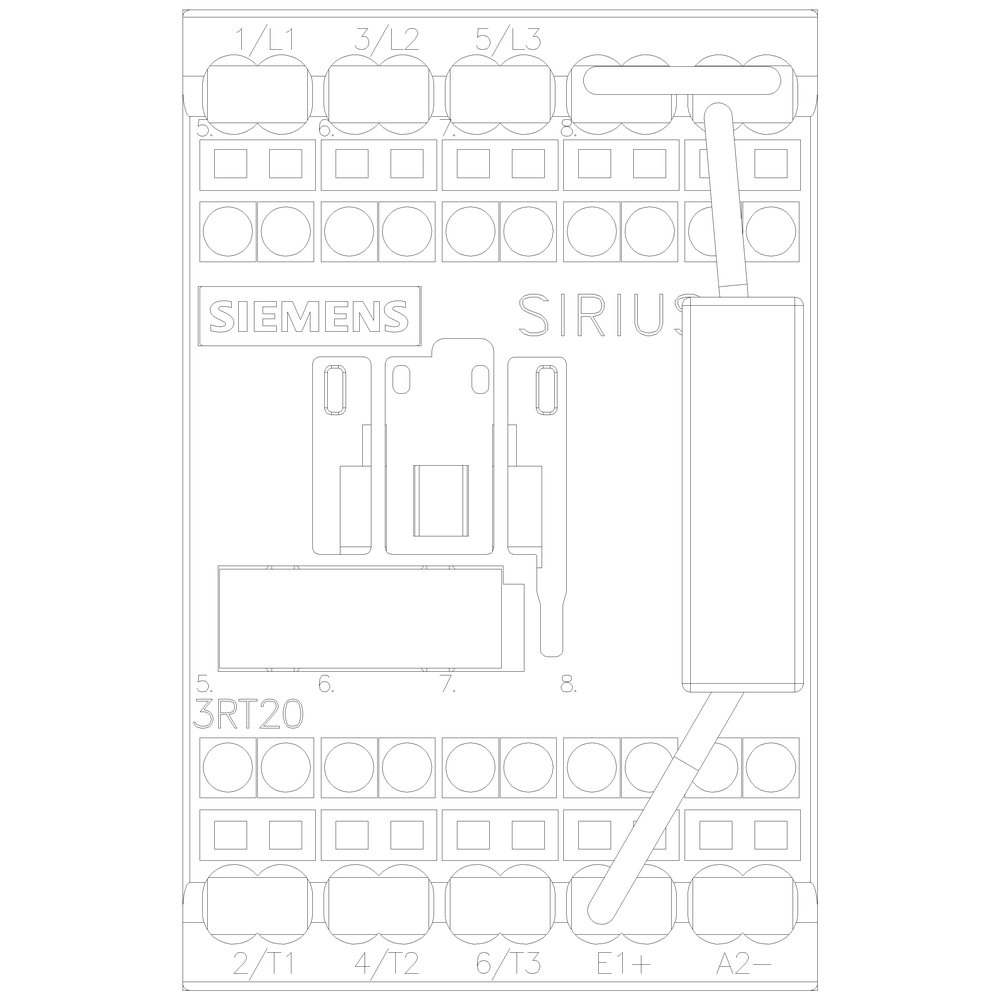

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20182LB420LA0

Item Number	3RT20182LB420LA0
Brand	Siemens Electrical
Height	4.890 IN
Length	2.920 IN
Modular version	TRUE
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	16 A
Rated operation current Ie at AC-4; 400 V	11.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power at AC-4; 400 V	5.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
Width	1.970 IN
