3RT20182EK61 | CONTACTOR.AC3:7.5KW 1NO 110V50HZ/120V60H | Siemens Electrical

CONTACTOR. AC-3. 7.5KW/400V. 1NO. AC110V 50HZ. 120V 60HZ 3-POLE. SZ S00 SPRING-LOADED TERMINAL RC 3RT2916-1CC00 MOUNTED

Brand: Siemens ElectricalSKU: 3RT20182EK61

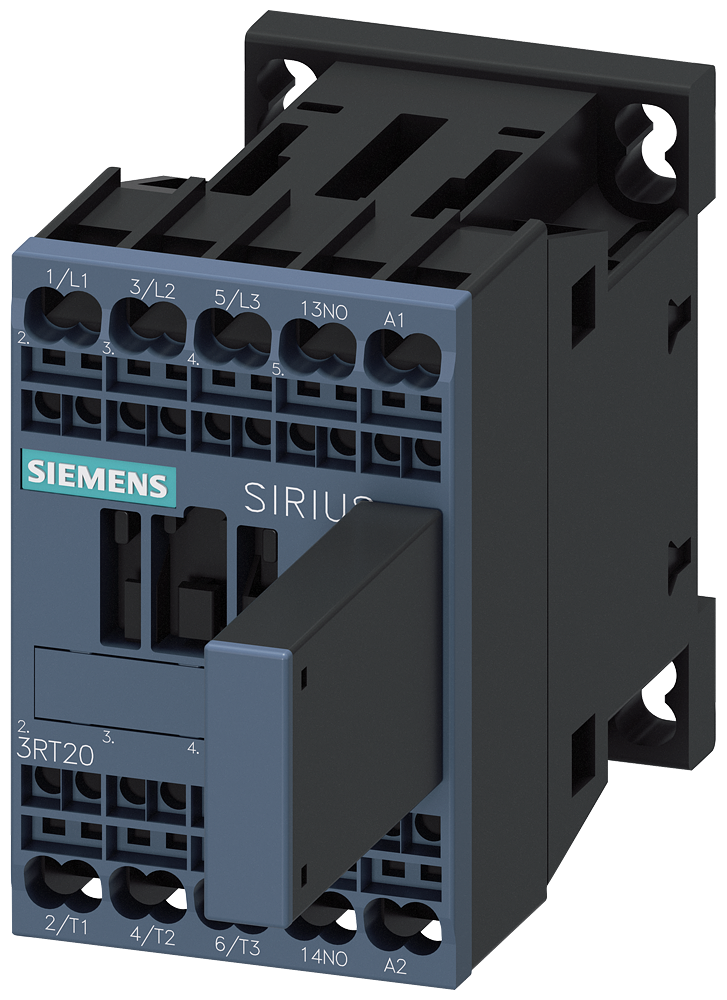

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20182EK61

Item Number	3RT20182EK61
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	16 A
Rated operation current Ie at AC-4; 400 V	11.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.60200 LB
