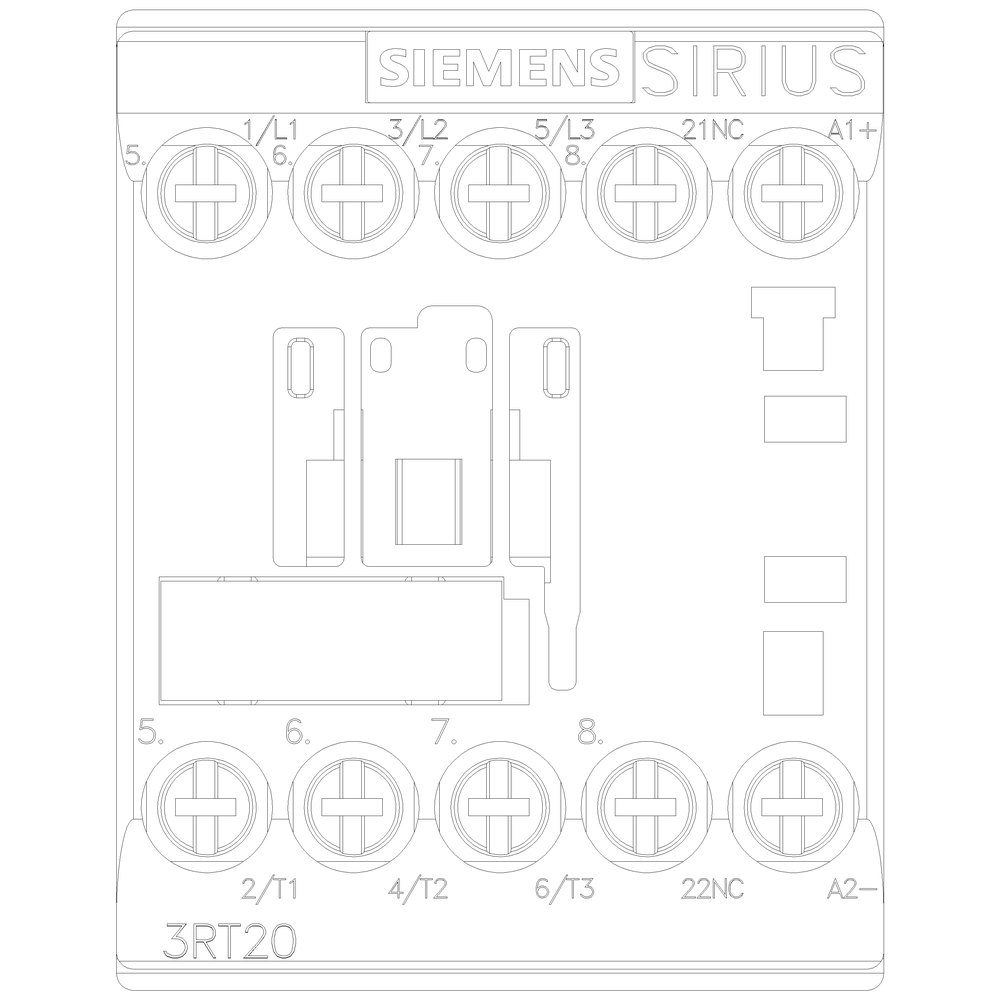

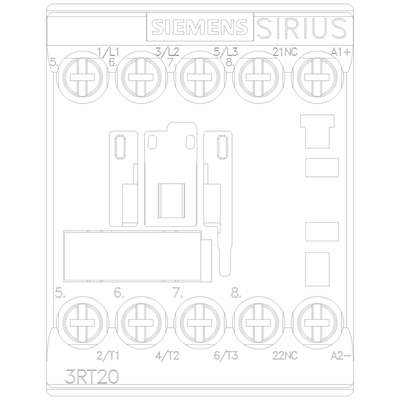

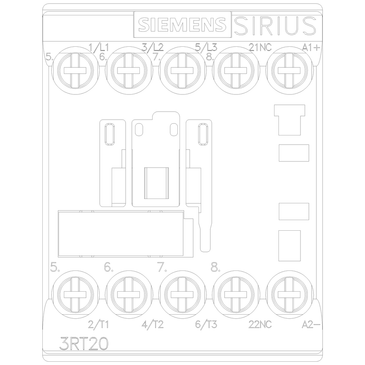

3RT20181BE82 | CONTACTOR.AC3:7.5KW 1NC DC80V | Siemens Electrical

Power contactor. AC-3 16 A. 7.5 kW / 400 V 1 NC. 80 V DC 3-pole. Size S00 screw terminals

Brand: Siemens ElectricalSKU: 3RT20181BE82

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20181BE82

Item Number	3RT20181BE82
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	80 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	16 A
Rated operation current Ie at AC-4; 400 V	11.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.63800 LB
