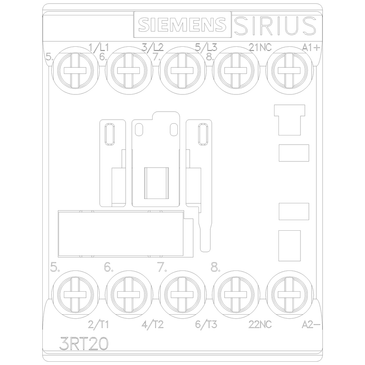

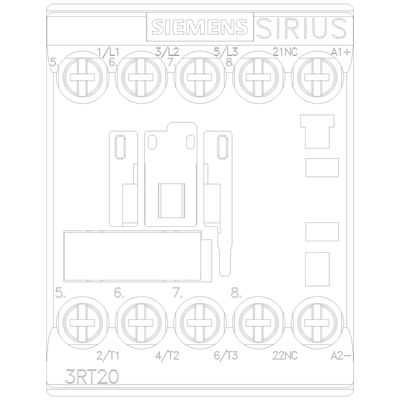

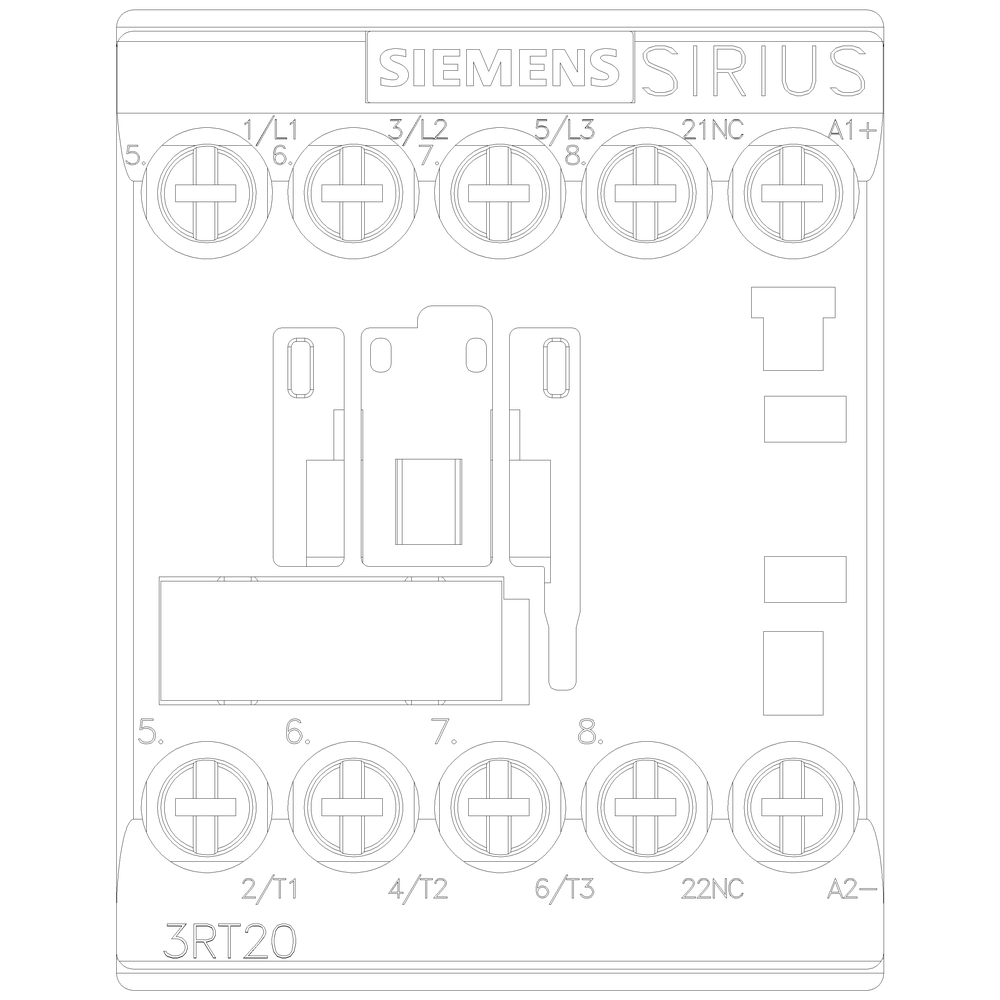

3RT20181BA42 | CONTACTOR S00 16A 12VDC 1NC SCRW | Siemens Electrical

CONTACTOR, AC-3, 7.5KW/400V, 1NC, DC 12V, 3-POLE, SZ S00 SCREW TERMINAL .

Brand: Siemens ElectricalSKU: 3RT20181BA42

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20181BA42

Item Number	3RT20181BA42
Brand	Siemens Electrical
Height	2.36300 IN
Length	3.150 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	12 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	16 A
Rated operation current Ie at AC-4; 400 V	11.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.64200 LB
Width	1.96900 IN
