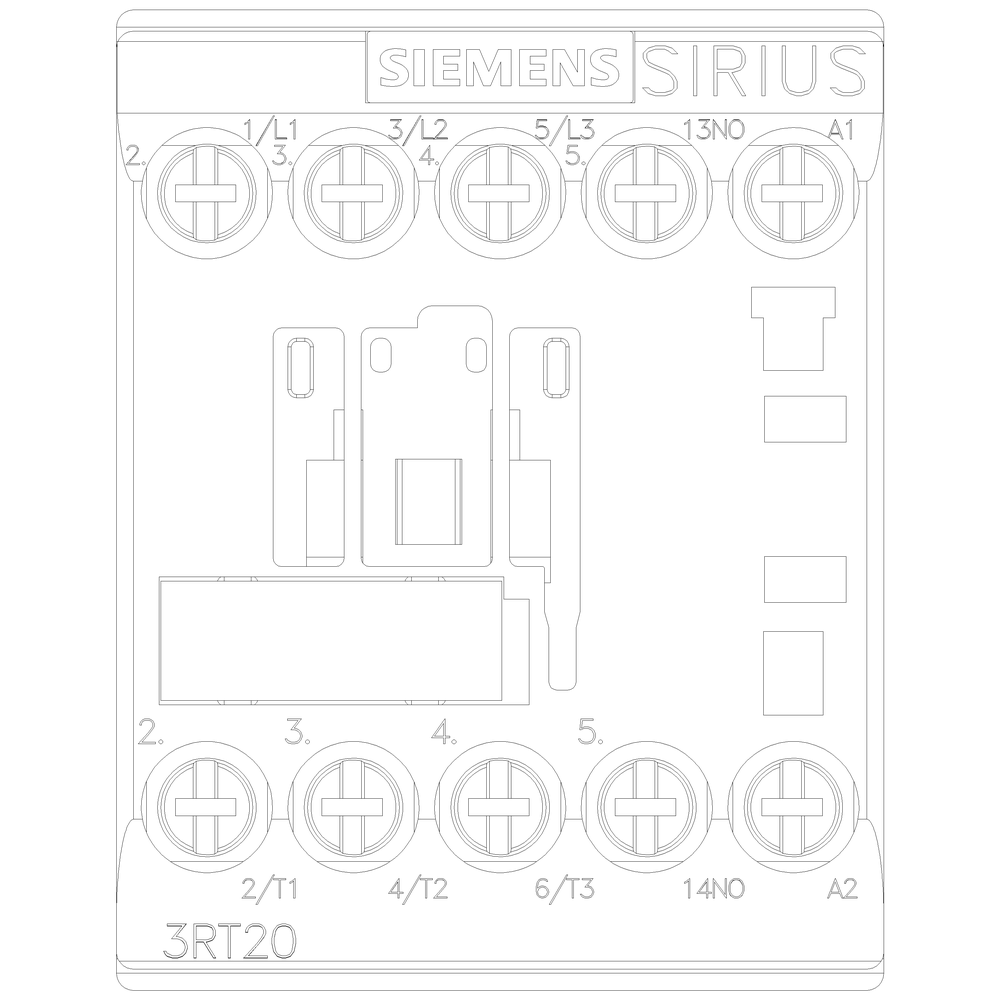

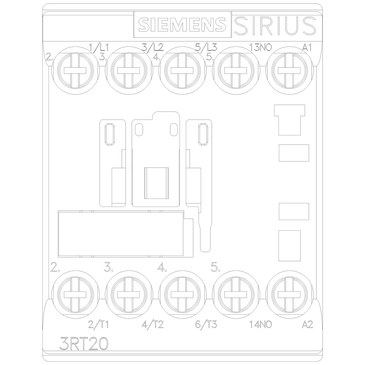

3RT20181AG61 | CONTACTOR S00 16A 100VAC 1NO SCRW | Siemens Electrical

CONTACTOR, AC-3, 7.5KW/400V, 1NO, AC 100V 50HZ, 100...110V 60HZ 3-POLE, SZ S00 SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20181AG61

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20181AG61

Item Number	3RT20181AG61
Brand	Siemens Electrical
Height	3.080 IN
Length	2.450 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	100 V
Rated control supply voltage Us at AC 60HZ	110 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	16 A
Rated operation current Ie at AC-4; 400 V	11.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power NEMA	7.354987499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.61600 LB
Width	1.970 IN
