Documents: 3RT20181AB02
3RT20181AB02 | CONTACTOR S00 16A 24VAC 1NC SCRW | Siemens Electrical
Contactor, AC-3, 7.5KW/400V, 1NC, AC 24V, 50/60 HZ, 3-pole, sz s00 screw terminal

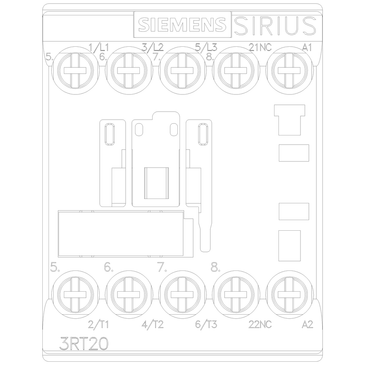

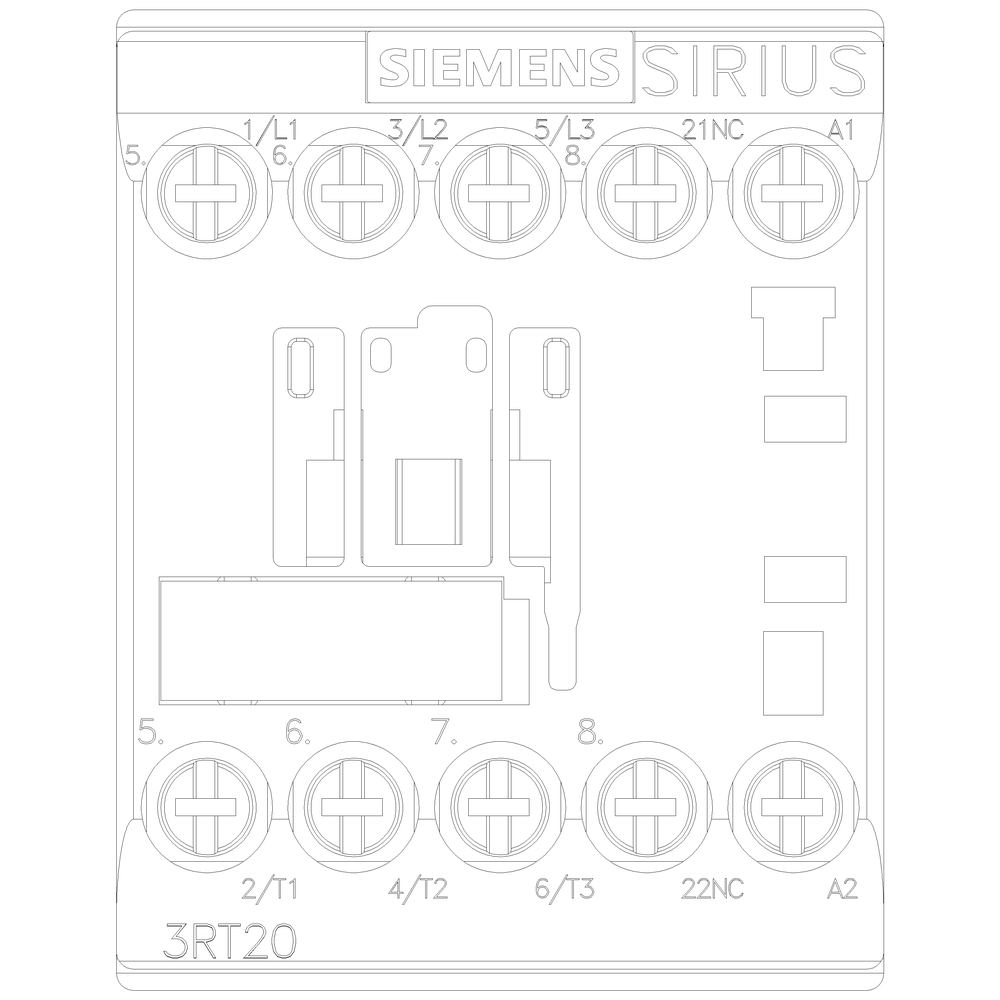

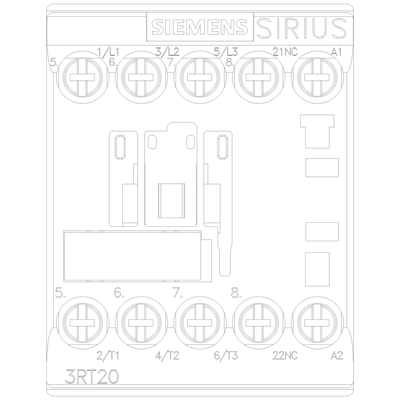

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20181AB02
Overview Details for 3RT20181AB02
Specifications
Item Number | 3RT20181AB02 |
Brand | Siemens Electrical |
Height | 2.400 IN |
Length | 2.700 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 24 V |
Rated control supply voltage Us at AC 60HZ | 24 V |
Rated operation current Ie at AC-1; 400 V | 22 A |
Rated operation current Ie at AC-3; 400 V | 16 A |
Rated operation current Ie at AC-4; 400 V | 11.5 A |
Rated operation power at AC-3; 400 V | 7.5 kW |
Rated operation power NEMA | 7.354987499 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 0.620 LB |
Width | 1.950 IN |
