3RT20174LB420LA0 | CONTACTOR RAIL S00 12A 24VDC 3P RLUG VAR | Siemens Electrical

CONT. F. RAILW. A., AC-3,5.5KW 400V, DC

Brand: Siemens ElectricalSKU: 3RT20174LB420LA0

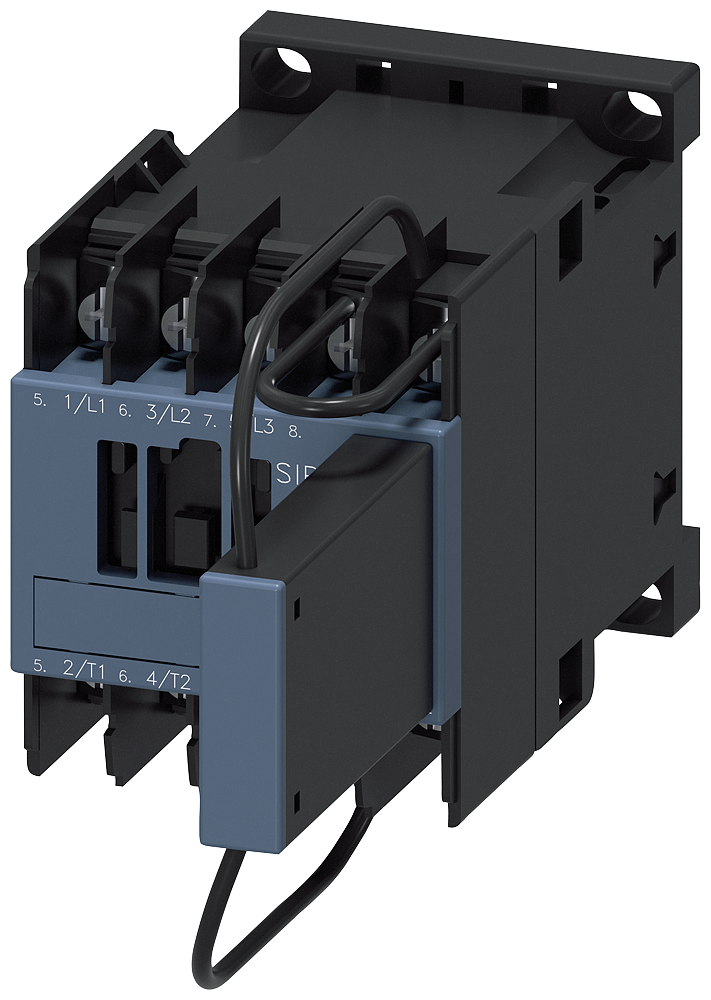

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20174LB420LA0

Item Number	3RT20174LB420LA0
Brand	Siemens Electrical
Brand Name	Siemens
Coil Power Rating	13 W / 4 W
Coil Voltage	DC
Connection	Ring cable lug connection / ring cable connection
Contact Configuration	-99999
Contact Rating	A600 / Q600
Height	4.930 IN
Length	2.960 IN
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail
Operating Cycles	30
Operating Temperature	-40 °C ... 70 °C
Phase	3
Power Factor	-99999
Size	0.045 m / 0.058 m / 0.117 m
Special Features	Mirror contact acc. to IEC 60947-4-1 / Mirror contact acc. t
Sub Brand	SIRIUS
Type	Power contactor
Weight	0.660 LB
Width	1.970 IN
