3RT20172VB42 | COUPLNG RELAY S00 12A 24VDC 1NC SPRG | Siemens Electrical

Coupling relay, AC-3, 5.5KW/ 400v , 1NC, DC 24V, 0.85...1.85*us, w. integrated diode 3-pole sz s00, spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20172VB42

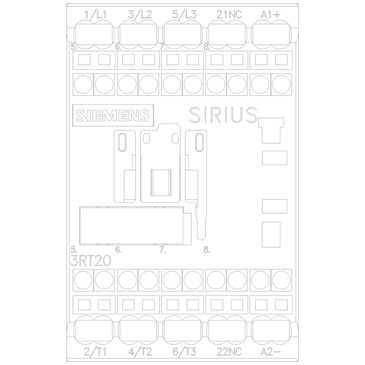

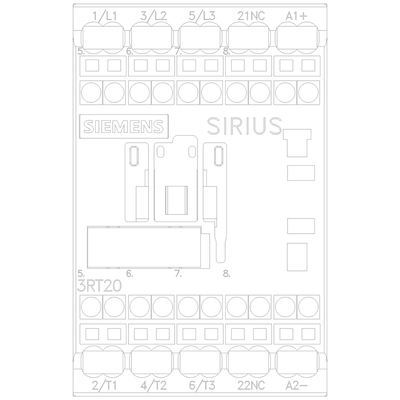

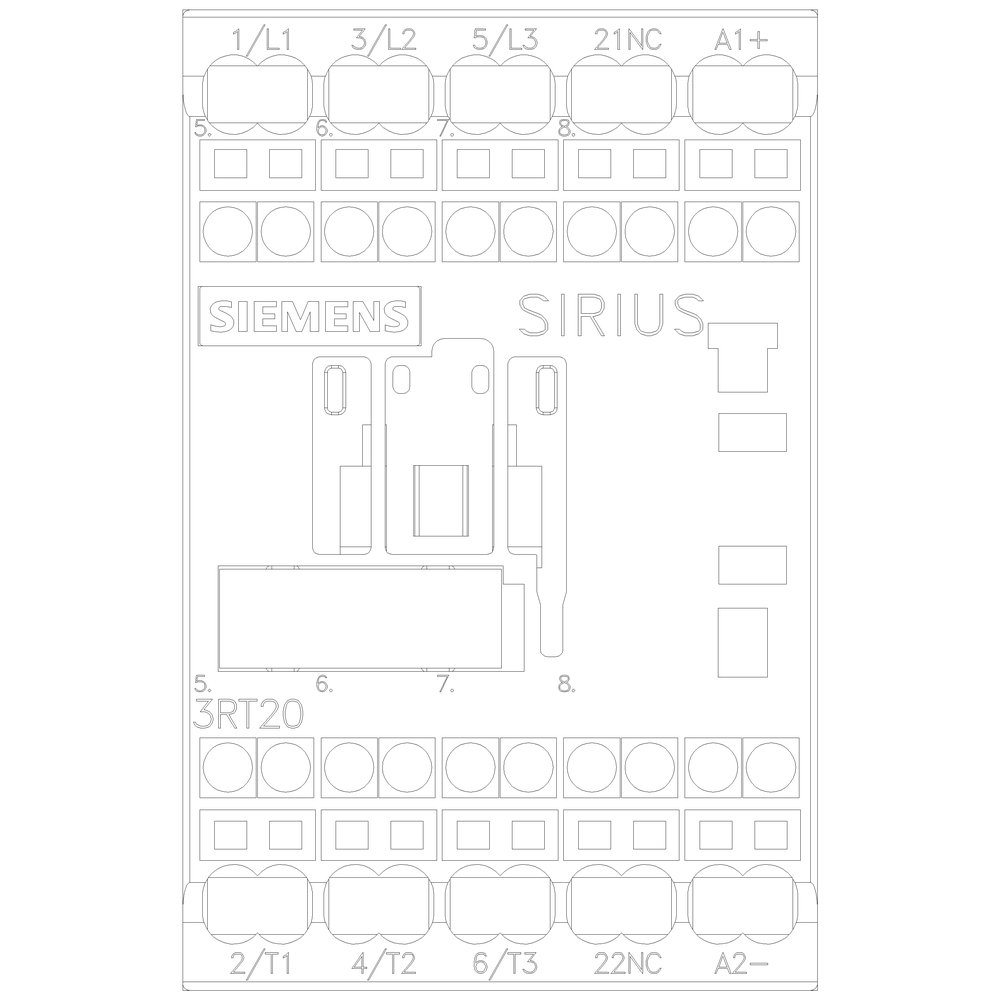

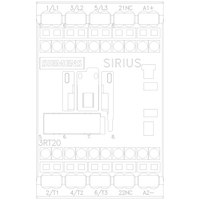

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20172VB42

Item Number	3RT20172VB42
Brand	Siemens Electrical
Height	2.850 IN
Length	2.450 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
Width	2.150 IN
