3RT20172QB41 | COUPLNG RELAY S00 12A 24VDC 1NO SPRG | Siemens Electrical

COUPLING RELAY, AC-3, 5.5KW/ 400V 1NO, DC 24V, 0.7...1.25*US, W. PLUGGED-ON VARISTOR, 3-POLE SZ S00, SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20172QB41

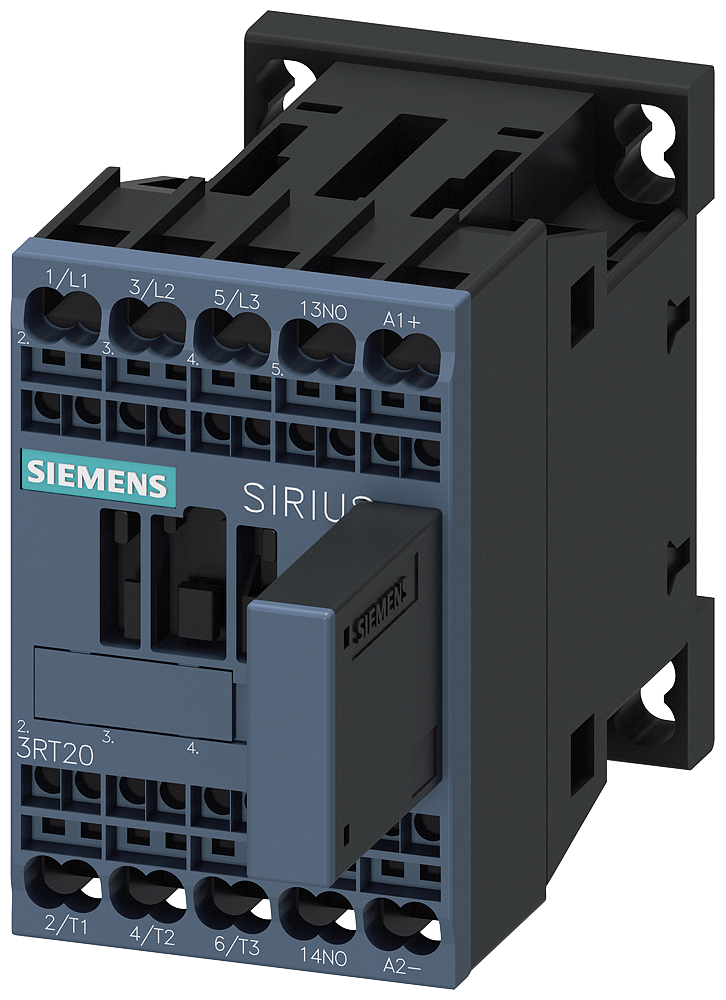

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20172QB41

Item Number	3RT20172QB41
Brand	Siemens Electrical
Height	4.890 IN
Length	2.920 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
Width	1.970 IN
