3RT20172KG42 | CONTACTOR RAIL S00 12A 125VDC 3P SPRG | Siemens Electrical

CONT. F. RAILW. A., AC-3,5.5KW 400V,1

Brand: Siemens ElectricalSKU: 3RT20172KG42

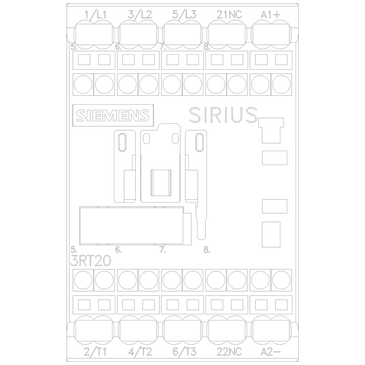

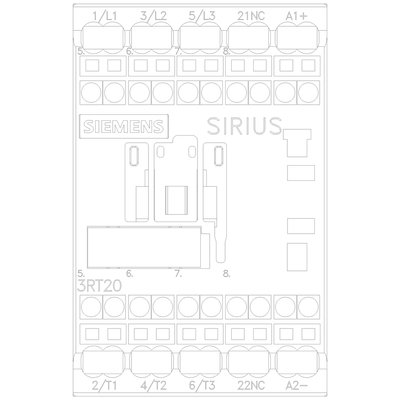

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20172KG42

Item Number	3RT20172KG42
Brand	Siemens Electrical
Height	3.05200 IN
Length	2.89400 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	125 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
Width	1.96900 IN
